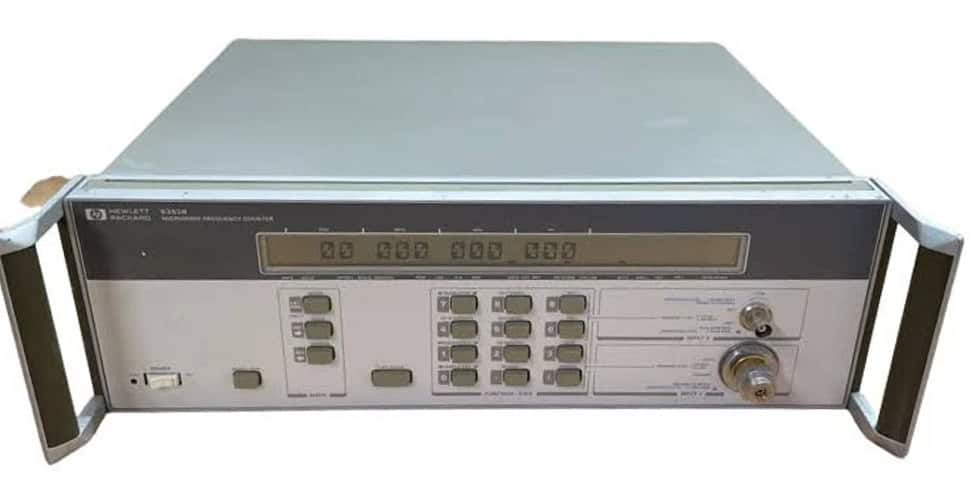

HP/Agilent 5352B 40 GHz CW Microwave Counter


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent 5352B provides fast and precise measurements from 10 Hz to 40 GHz (46 GHz optional) and features microwave components that are integrated on a single hybrid gallium arsenide (GaAs) circuit for added speed and reliability. The 5352B distinguished by wide frequency coverage, exceptional sensitivity, fast tracking, high measurement throughput, and wide FM tolerance.
Built-in microprocessors provide math functions, including measurement scaling and offset. Automatic amplitude discrimination measures the frequency of the highest-amplitude signal in a multi-signal environment. A full set of diagnostic routines provides general information and troubleshooting.
The 5352B integrates easily into test systems. English-like commands simplify integration with other components, and the easy-to-read liquid crystal displays can serve as message centers for the system.

SKU: KEY5352B Category: Tag:

Description

Frequency range from 10 Hz to 40 GHz (46 GHz with Opt. 005) directly measures
in millimeter wave range, without expensive mixers.
Sensitivity to -32 dBm ensures accurate measurement of low-energy signals.
Low kickback noise for sensitive environments; sleep mode reduces noise
to -70 dBm.
Fast acquisition time (60 ms in automatic, fast acquisition tracking
mode; 20 ms in manual mode) for improved throughput.
Up to 120 measurements per second (100 in automatic mode) over
HP-IB (fully programmable).
Fast tracking speed allows effortless tracking of source drift
to 1 GHz per second; ideal for measuring the response of voltage-controlled
oscillator
to voltage-source tuning.

Additional information

Weight 10 lbs
