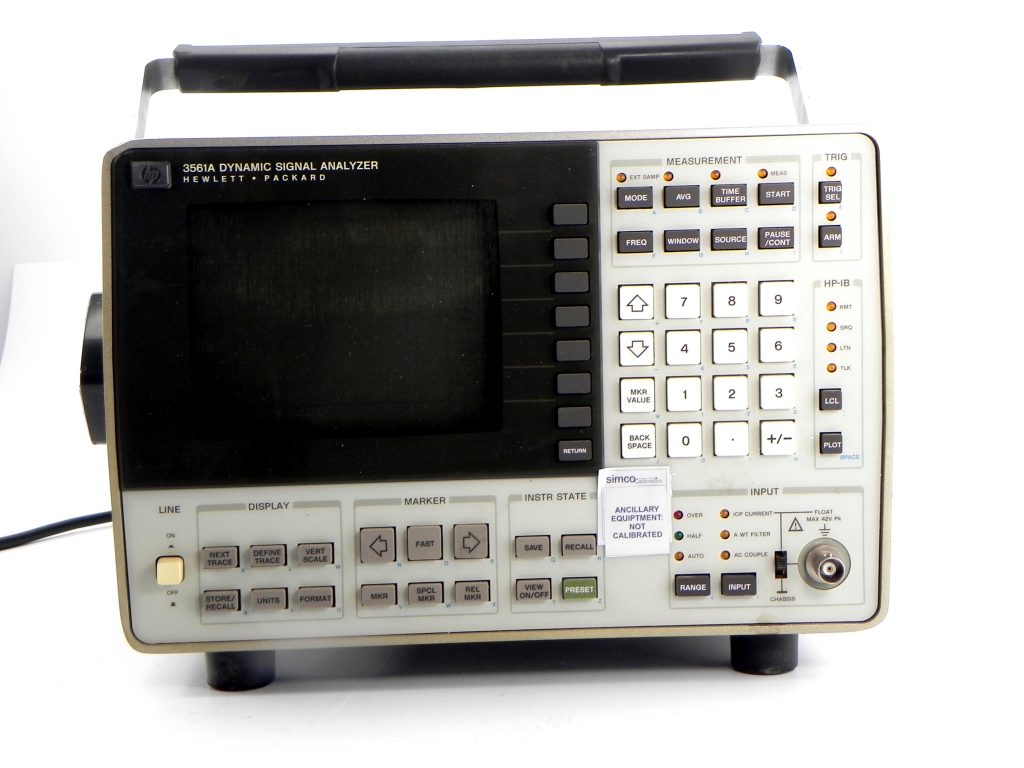

The 3561A is a low frequency, high performance dual channel dynamic signal analyzer. Displays include a three-dimensional spectral map and time waveforms. The 3561A incorporates a 40 k sample time buffer for later measurements and allows for acoustic measurements with its FFT-synthesized 1/3 and 1/2 octave measurements, together with the built-in analog A-weighted filter.
The analyzer also has a built-in tracking generator for stimulus-response measurements . With built-in waveform math, magnitude and phase measurements are possible. Digital processing is used to provide ultra-narrow resolution bandwidths up to 640uHz. Digital processing also speeds up measurements; a measurement with 1 Hz resolution requires only a 1.5 second sweep.

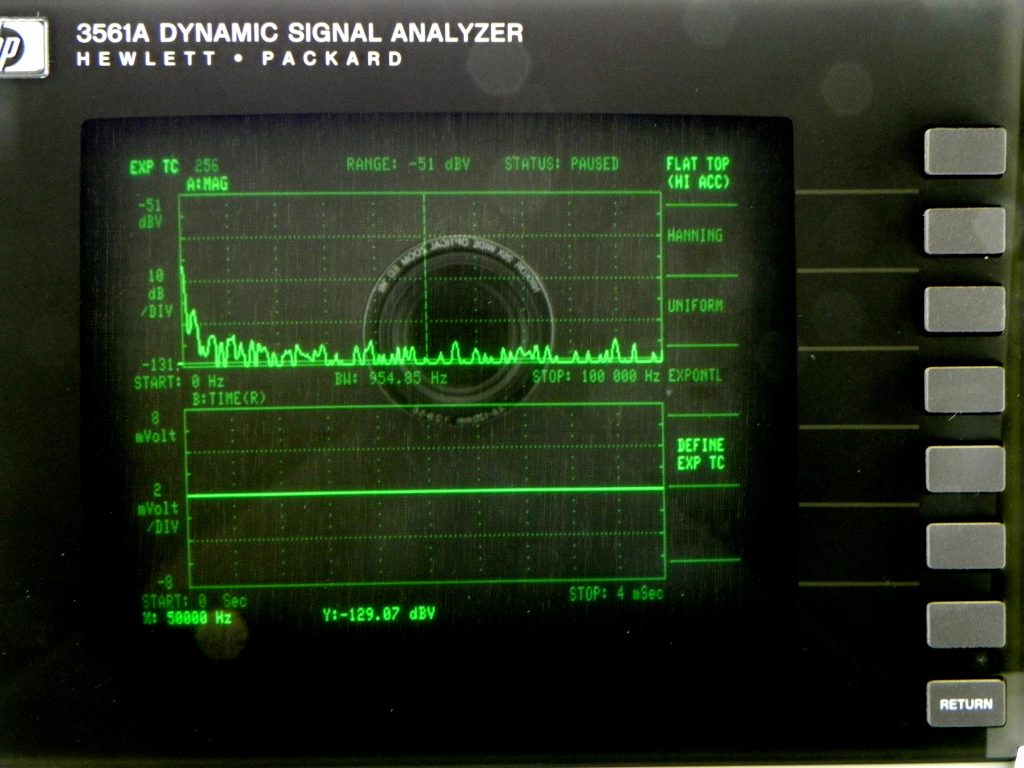

In addition to spectrum measurements, the 3561A displays time waveforms similar to oscilloscope displays. A 40k sample time buffer captures transients for examination in the time domain or analysis in the frequency domain. The HP 3561A is also an excellent analyzer for acoustic testing.
Frequency range: 0.000125 Hz to 100 kHz
Resolution: 0.25% of the frequency span
Dynamic range: 80 dB
Amplitude accuracy: ± 0.15 dB
Amplitude range: +27 dBv to -120 dBv

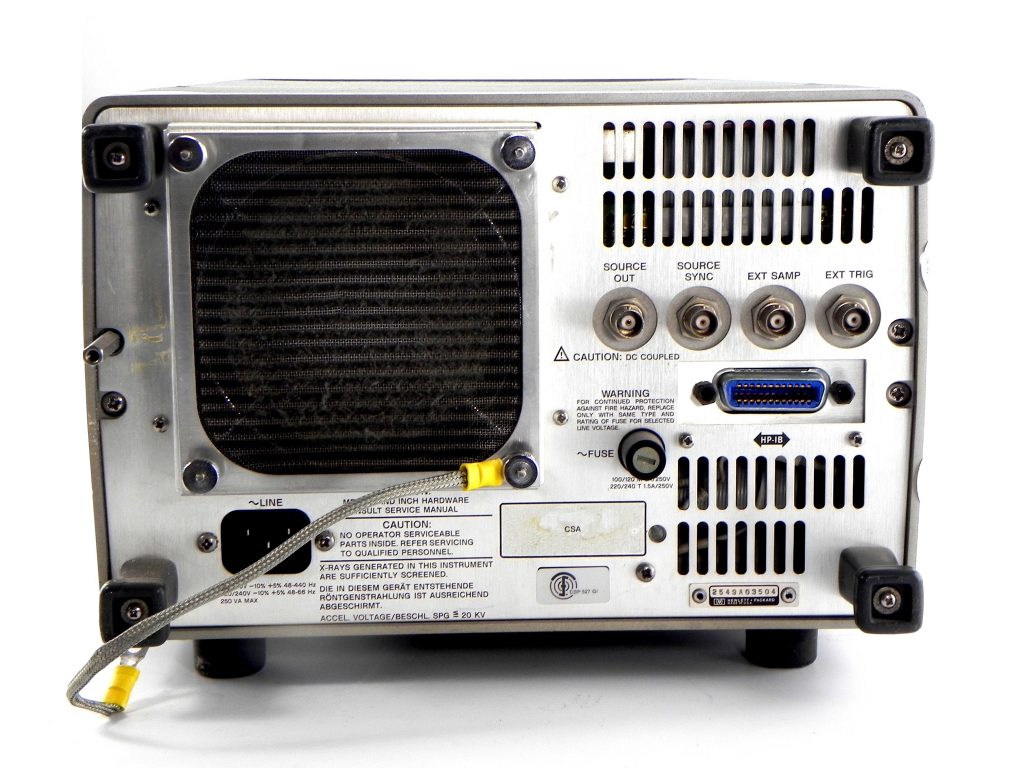

BNC(f) input connectors
1 megohm input impedance
100, 120/220, 240 Vac, +5% -10%, 48-440 Hz operation
Weight: 33 lb; Size: 197 mm (7.8 in)H x 335 mm (13.2 in)W x 595 mm (23.4 in)D
| Weight | 31 lbs |
|---|---|
| Dimensions | 10 × 15 × 23 in |
