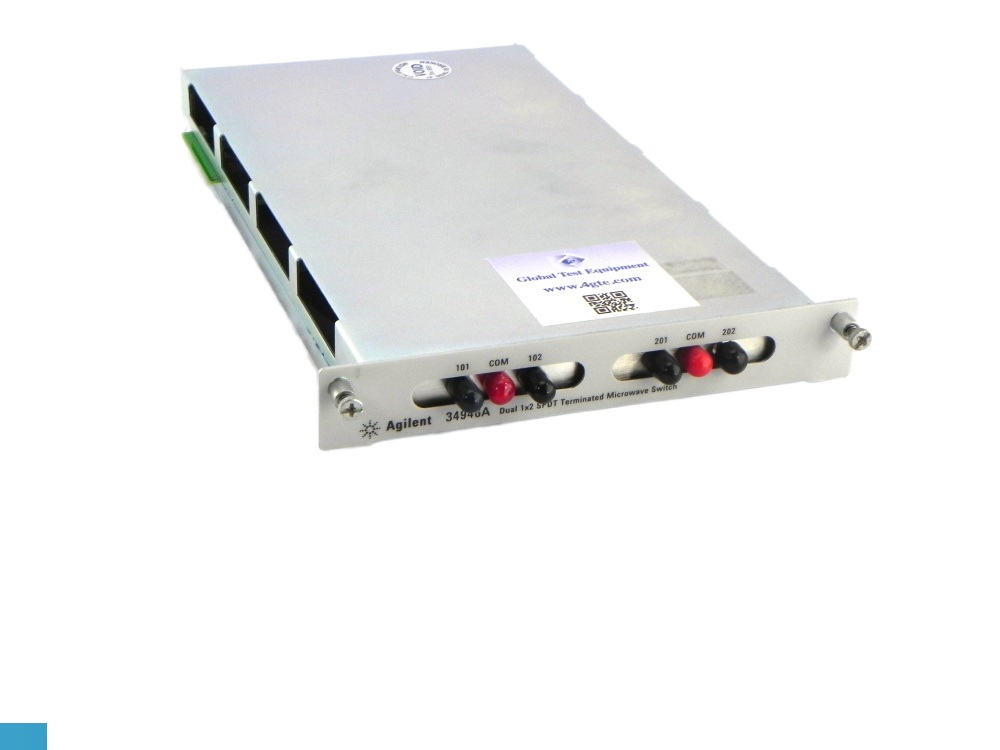

Keysight 34946A- 004 Dual 1×2 SPDT Terminated Microwave Switch Module


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent 34946A microwave switch for the 34980A Multifunction Switch/Measure Unit offers bi-directional switching for test signals from DC to 20 GHz. These switches provide excellent insertion loss, isolation, and VSWR specification. The microwave switches are configured as two independent 1×2 (SPDT) terminated switches on a single module. For general-purpose microwave switching applications, the module can be used to switch separate signal sources for a multi-band receiver/transmitter testing application.

SKU: KEY34946A-004 Categories: , Tag:
Brand:

Description

  • Two SPDT terminated switches
  • 4 GHz or 20 GHz options
  • High isolation, low VSWR
  • Up to 50W switching
  • SMA connectors

Options  004

Option Description
004 4 GHz switches installed
020 20 GHz switches installed

Additional information

Weight 5 lbs
Dimensions 3 × 8 × 9 in
Condition

Model Number

34946A – 026

Manufacturer

HP/Agilent

Type
