HP/Agilent 33250A Function/Arbitrary Generator, 80 MHz


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

Unit is calibrated.

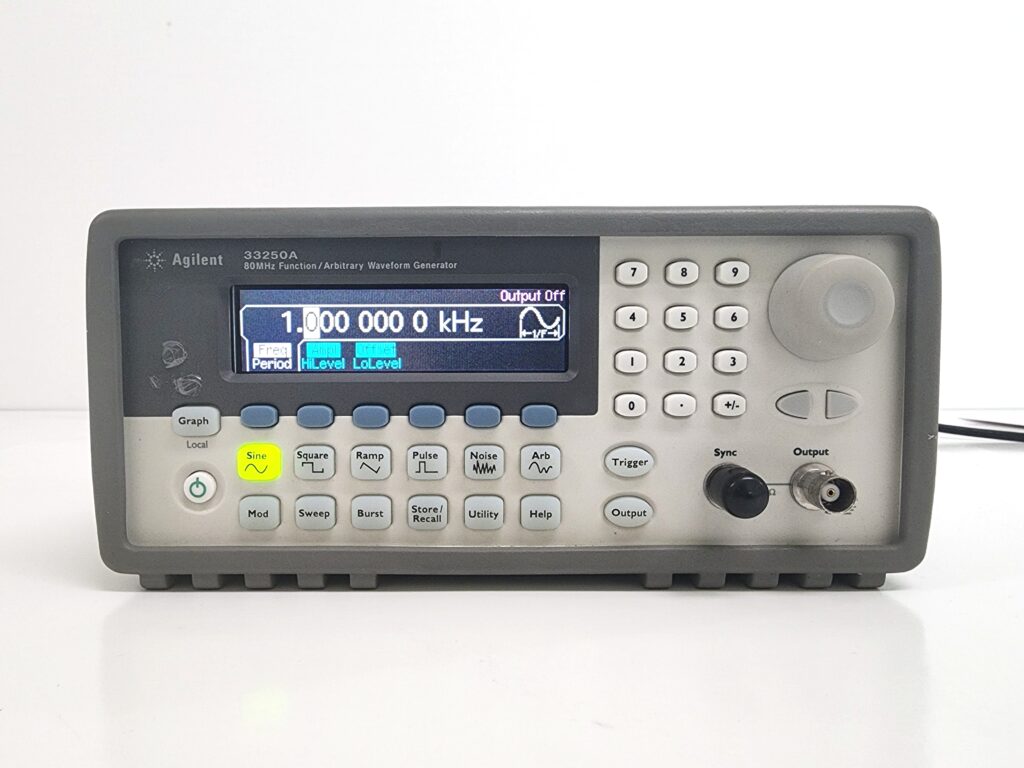

The 33250A is Agilent’s highest performance function generator, featuring 80 MHz bandwidth, arbitrary waveforms and pulse generation. A color graphical display makes quick work of setting up complex signals.

If calibration expiration is less than 6 months,

unit will be re-calibrated.

Re-Calibration can take up to 10 days.

Description

  • 80 MHz sine and square waveforms
  • Ramp, triangle, noise and DC waveforms
  • Pulse capability with variable edge
  • 12-bit, 200 MSa/s, 64 Kpoint arbitrary waveforms
  • AM, FM & FSK, burst (all internal/external)
  • Linear & logarithmic sweeps and burst operation modes
  • Graph mode for visual verification of signal settings
  • IntuiLink software plus GPIB & RS-232 interfaces included
  • Built-in multiple-unit link for synchronous channels

Accessories

Part Number Description
Qty
Power Cord
1
33250-90011 Service Guide
1
33250-90002 User’s Guide
1
33250-90007 Quick reference Guide
1
Intuilink Software, Version 1.4
1
RS-232, 9-pin cable
1

Options

Option Description
0B0 No manual set
1CM rackmount kit
PCUSB 82357A USB/GPIB Interface for PC Connection

33250A Function/Arbitrary Generator, 80 MHz

Additional information

Weight 10 lbs
Dimensions 4 × 9 × 15 in
Condition

Model Number

33250A

Frequency Low Khz

80000

Low Frequency

80000

Manufacturer

HP/Agilent

Type
