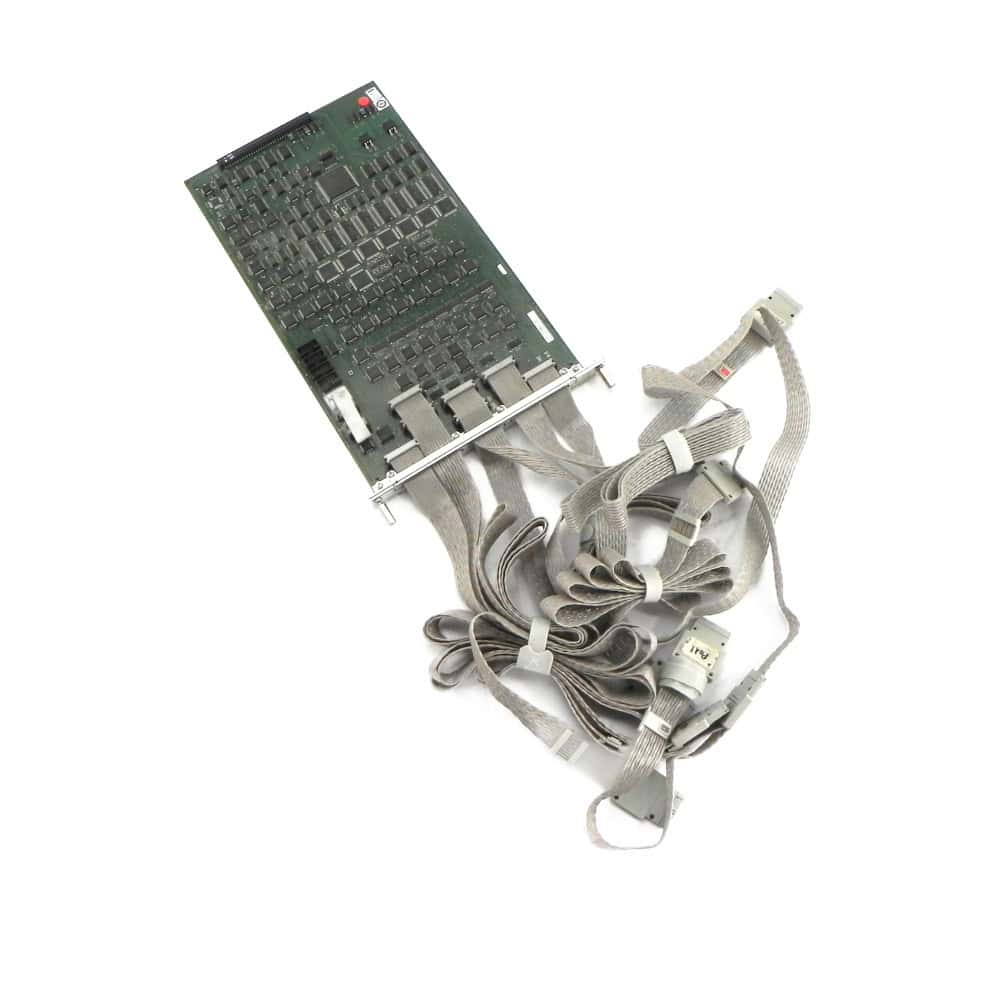

Description
- Stimulus speed up to 300 MVectors/s
- Depth up to 16 MVectors
- Up to 48 channels per module
- Scalable features to match your budget
- TTL/CMOS/ECL/PECL Voltage level support
- Synchronized clock output
- “INIT” block to facilitate repetitive runs
Accessories
|
QTY
|
Description | Part Number |
|
6
|
Data Cables | 16522-61601 |
|
1
|
Clock Cable | 16522-61602 |
|
1
|
Interconnect Cable | 16522-61603 |
Options
| Option | Description |
| 011 | TLL Clock Pod and Lead Set |
| 013 | Tri-State TTL/CMOS Data Pod and Lead Set |
| 014 | TTL Data Pod and Lead Set |
| 015 | 2.5 volt Clock Pod and Lead Set |
| 016 | Tri-State 2.5 volt Data Pod and Lead Set |
| 017 | 3.3 volt Clock Pod and Lead Set |
| 018 | 3.3 volt Tri-State Data Pod and Lead Set |
| 021 | ECL Clock Pod and Lead Set |
| 022 | ECL (Terminated) Data Pod and Lead Set |
| 023 | ECL (Unterminated ) Data Pod and Lead Set |
| 031 | 5 volt PECL Clock Pod and Lead Set |
| 032 | 5 volt PECL Data Pod and Lead Set |
| 033 | 3.3 volt LVPECL Clock Pod and Lead Set |
| 034 | 3.3 volt LVPECL Data Pod and Lead Set |
| 041 | 1.8 volt Data Pod and Lead Set |
| 042 | 1.8 volt 3-State Data Pod and Lead Set |
| 051 | LVDS Clock Pod and Lead Set |
| 052 | LVDS Data Pod and Lead Set |
| 0B0 | Delete Manual Set |
| 0B1 | Additional User’s Guide |
| 0B3 | Service Manual |
