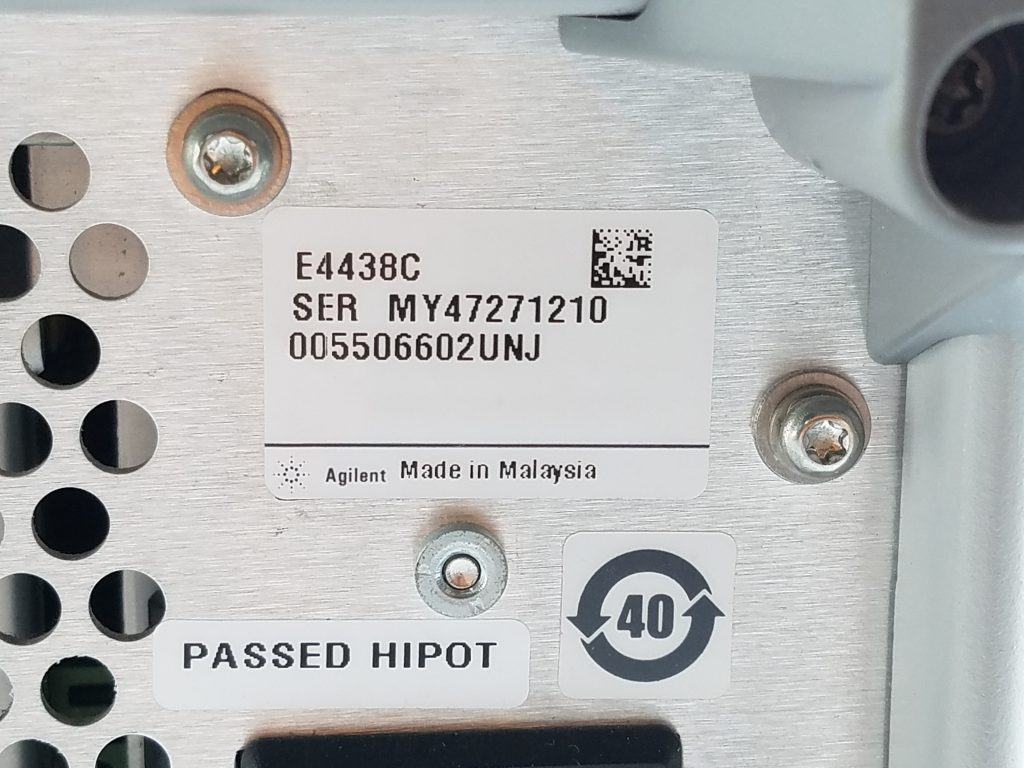

HP/Agilent E4438C ESG Vector Signal Generator 6 GHz with Options 003-004-005-506-602-UNB-UNJ


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

RF performance and leading-edge baseband generation
Agilent’s E4438C ESG vector signal generator combines outstanding RF performance and sophisticated baseband generation to deliver calibrated test signals at baseband, IF, and RF frequencies up to 6 GHz. Featuring an internal baseband generator with arbitrary waveform and real-time I/Q capabilities, ample waveform playback and storage memory, and a wide RF modulation bandwidth, the E4438C ESG is equipped to test today’s complex wireless systems and their components.

Modular architecture to meet your test requirements
The E4438C ESG is an adaptable platform with optional capabilities to customize the instrument for baseband and RF test applications ranging from simple distortion test and general purpose troubleshooting to baseband coding algorithm development, advanced transceiver design verification, and high volume manufacturing. Its modular architecture makes it easy to configure the instrument with the level of performance and signal creation capability you need today with the option to upgrade in the future.

SKU: KEYE4438C-1 Categories: , Tag: Brand: ,

Description

  • Frequency range 250 kHz to  6 GHz
  • Output power up to +17 dBm
  • RF modulation bandwidth up to 160 MHz
  • Flexible FSK, MSK, PSK, QAM, custom I/Q, AM, FM, ØM, and pulse
  • Step & list sweep frequency and power
  • Internal baseband generator (80 MHz RF BW)
  • Arbitrary I/Q waveform playback (up to 100 MSa/s)
  • Up to 64MSa playback memory and 1 GSa storage
  • Real-time I/Q symbol generation (up to 50 Msym/s)
  • Generate 802.11 WLAN, W-CDMA, cdma2000, 1xEV, TD-SCDMA, GSM, EDGE, cdmaOne, multitone, and more
  • Digital I/O, fading, and PC HDD waveform streaming with Baseband Studio
  • Remote control over 10BaseT LAN and GPIB
  • SCPI and IVI-COM drivers

Accessories

Part Number Description
Qty
Power Cord
1
E4400-90503 User’s Guide
1
E4400-90502 Installation Guide
1
E4400-90504 Key and Data Fields Vol I
1
E4400-90505 Programming Guide
1
E4400-90506 SCPI Commands Vol I
1
E4400-90507 Error Messages
1
E4400-90509 Calibration Guide
1
E4400-90511 Service Guide
1
E4400-90515 Key and Data Fields Vol II
1
E4400-90535 SCPI Commands Vol II
1
E4400-90543 Programming Compatibility Guide
1
E4400-90594 SCPI Commands Vol III
1

Options

Option Description
1CN Front Handle Kit (5063-9227)
1CM Rack Mount Kit without Handles (5063-9214)
1CP Rack Mount Kit with Handles (5063-9221)
001 Internal Baseband Generator (8 MSamples memory)
002 Internal Baseband Generator (32 MSamples memory)
003 Digital Output Connectivity w/N5102A
004 Digital Input Connectivity w/N5102A
005 6 Gbyte Hard Drive
1E5 High Stability Time-base
1EM Rear Connectors
300 GSM/Edge Base-station Loop-back Test
400 3GPP WCDMA (FDD) Personalities
401 CDMA2000 and IS95-A Personalities
402 TDMA Personalities (GSM, EDGE, NADC, PDC, PHS, DECT, TETRA)
403 Calibrated Noise Personalities
404 1XEV-DO Signal Studio Software
406 Bluetooth Signal Studio Software
408 Signal Studio for Enhanced Multitone
409 GPS Personality
411 TD-SCDMA (TSM) Signal Studio Software
414 Signal Studio for 1xEV-DV and CDMA2000
417 Signal Studio for 802.11 WLAN
418 Signal Studio for HSDPA over W-CDMA
419 Signal Studio for 3GPP W-CDMA HSPA
420 Signal Studion for Pulse Building
421 Signal Studio for Noise Power Ratio (NPR)
501 250 kHz to 1 GHz
502 250 kHz to 2 GHz
503 250 kHz to 3 GHz
504 250 kHz to 4 GHz
506 250 kHz to 6 GHz
601 Internal Baseband Generator (8 Msamples Memory) with Digital Bus Capability
602 Internal Baseband Generator (32 Msamples Memory) with Digital Bus Capability
SP1 Provide Jitter Injection for Signal Studio
SP2 Provide Dynamic Sequencing Capability
UN7 Internal Bit Error Rate Analyzer
UNB High Power Output with Mechanical Attenuator
UNJ Enhanced Phase Noise Performance

Additional information

Weight 42 lbs
Dimensions 22 × 26 × 12 in
Condition

Model Number

E4438C

Frequency Low Khz

6000000

Low Frequency

6000000

Manufacturer

HP/Agilent

Max Output

+17 dBm

Modulation Type

AM, FM, Pulse, Phase

Type
