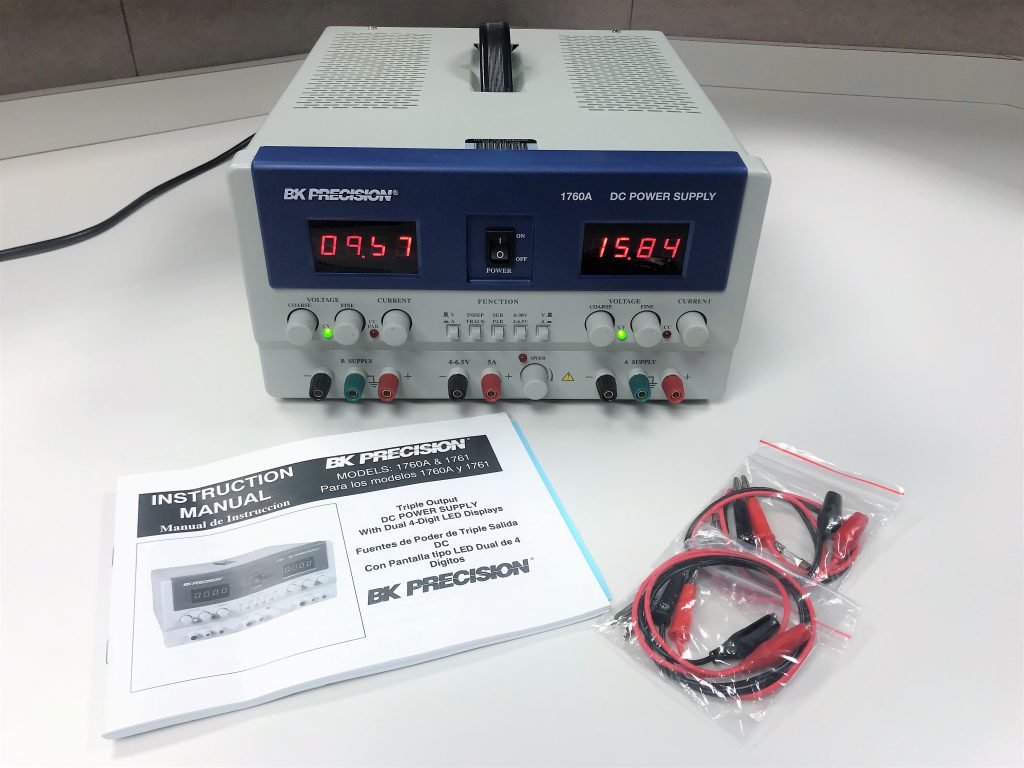

BK Precision 1760A, 4 Digit Triple Output DC Power Supply 0-30V, 0-2A x2, 4-6.5V, 5A x1


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

  • Two 0 to 30 VDC, 2 A sections capable of independent, series or parallel operation
  • One 4 to 6.5 VDC, 5 A section
  • Switchable series/parallel operation (30 V sections)
  • Adjustable current limit controls (30 V sections)
  • Unique variable tracking, B track A at 5% to 100%
  • UL certified
SKU: BK1760A Categories: , Tag:
Brand:

Description

  • Two 0 to 30 VDC, 2 A sections capable of independent, series or parallel operation
  • One 4 to 6.5 VDC, 5 A section
  • Switchable series/parallel operation (30 V sections)
  • Adjustable current limit controls (30 V sections)
  • Unique variable tracking, B track A at 5% to 100%
  • UL certified

Accessories: Instruction Manual





Additional information

Weight 10 lbs
Dimensions 14 × 12 × 8 in
Condition

Model Number

1760A

Input Power

120

Manufacturer

BK Precision

Type

Voltage

30,30,6.5

Watts

60
