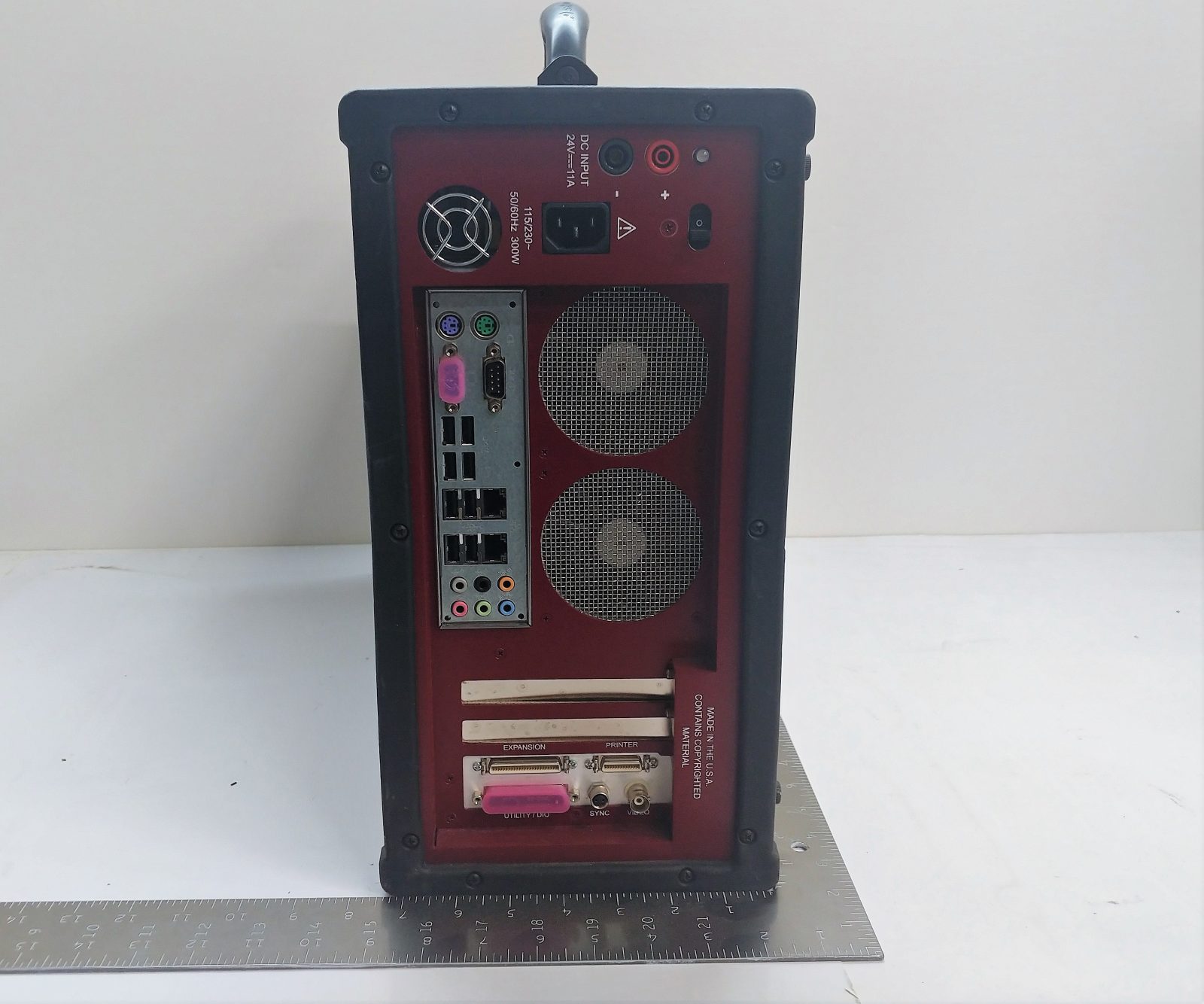

Astro-Med TMX-18 High Speed Data Acquisition System


General Inquiries/Quote Request
Rental/Lease Information Request

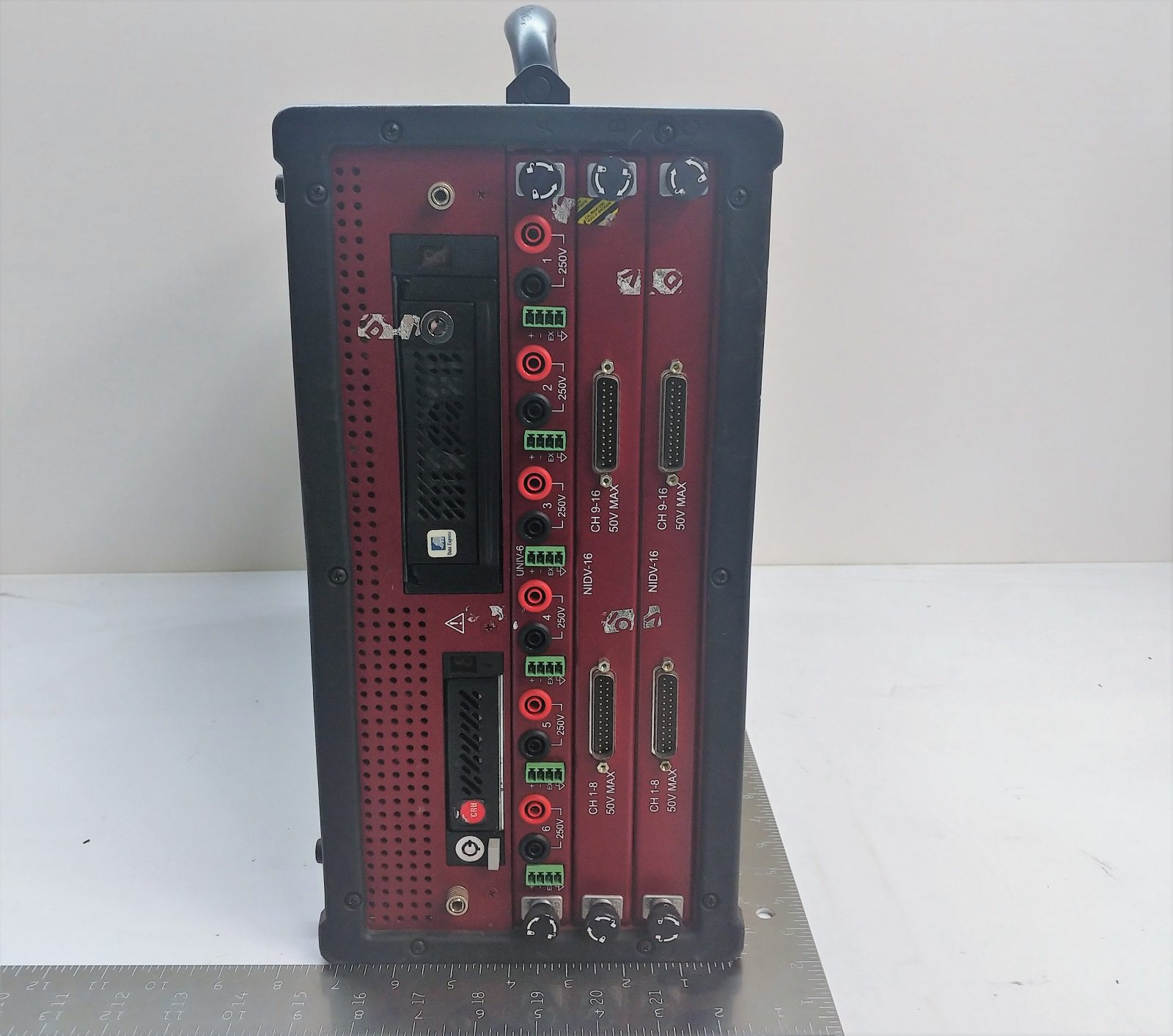

Includes (2) ASMNIDV-16 and (1) UNIV-6 Modules

TMX-18 High Speed Data Acquisition System with its dedicated 1 Byte hard drive for data capture,  is ideal for long-term trending and high-speed event detection.  Each channel uses a separate 16 bit A/D for perfect data synchronization

ASMNIDV-16 16-Channel Non-isolated Differential Voltage Module (accepts up to 35 Vrms or 50 VDC)

UNIV-6  6-Channel Universal Module Voltage and DC Bridge (accepts up to 250 Vrms)

SKU: ASMTMX-18 Categories: , Tag:
Brand:

Description

  • Replaces the Dash 18x with improved performance and many new features
  • Includes 18 Channels of Isolated Voltage (250 Vrms) & DC Bridge Inputs

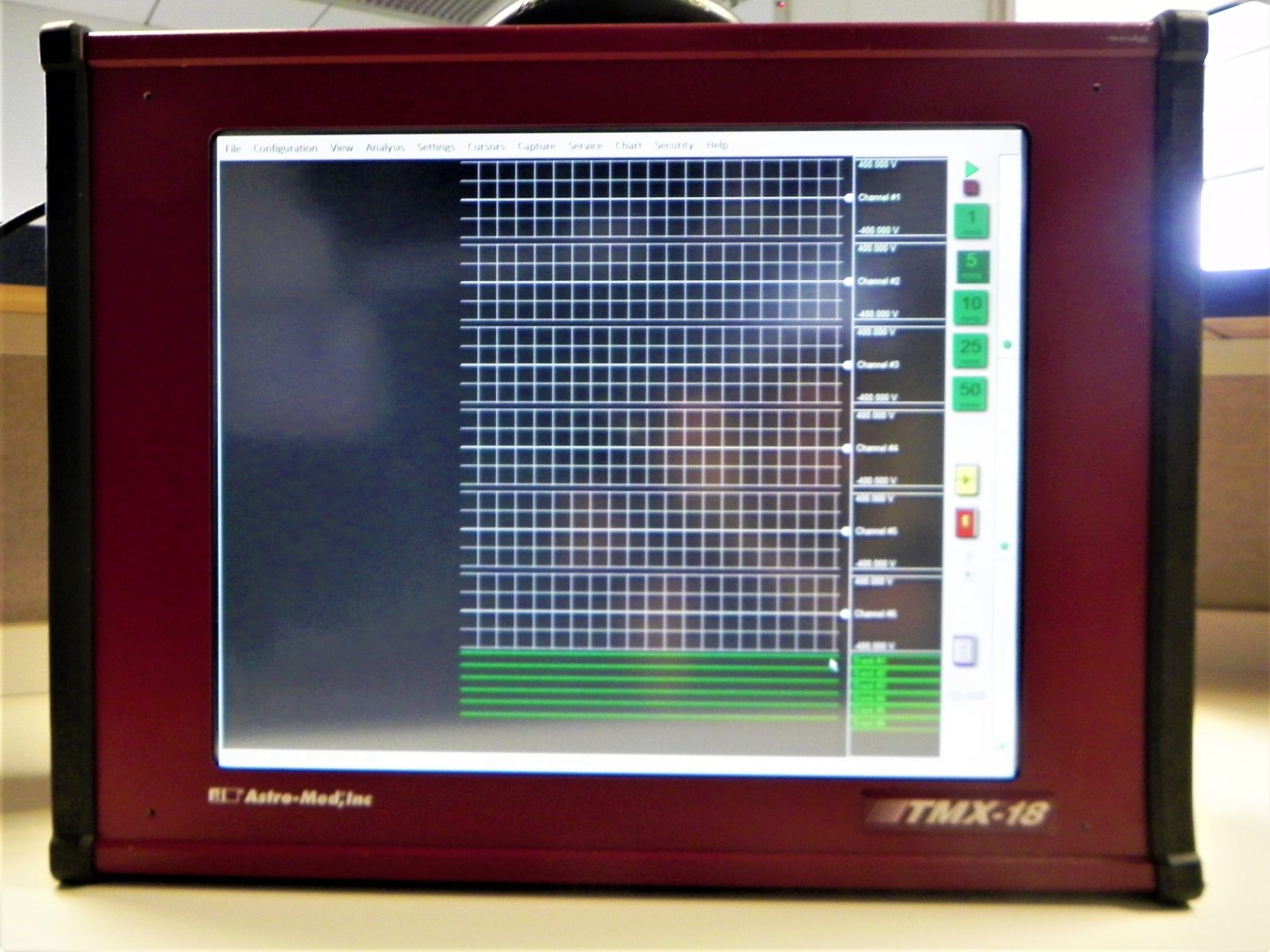

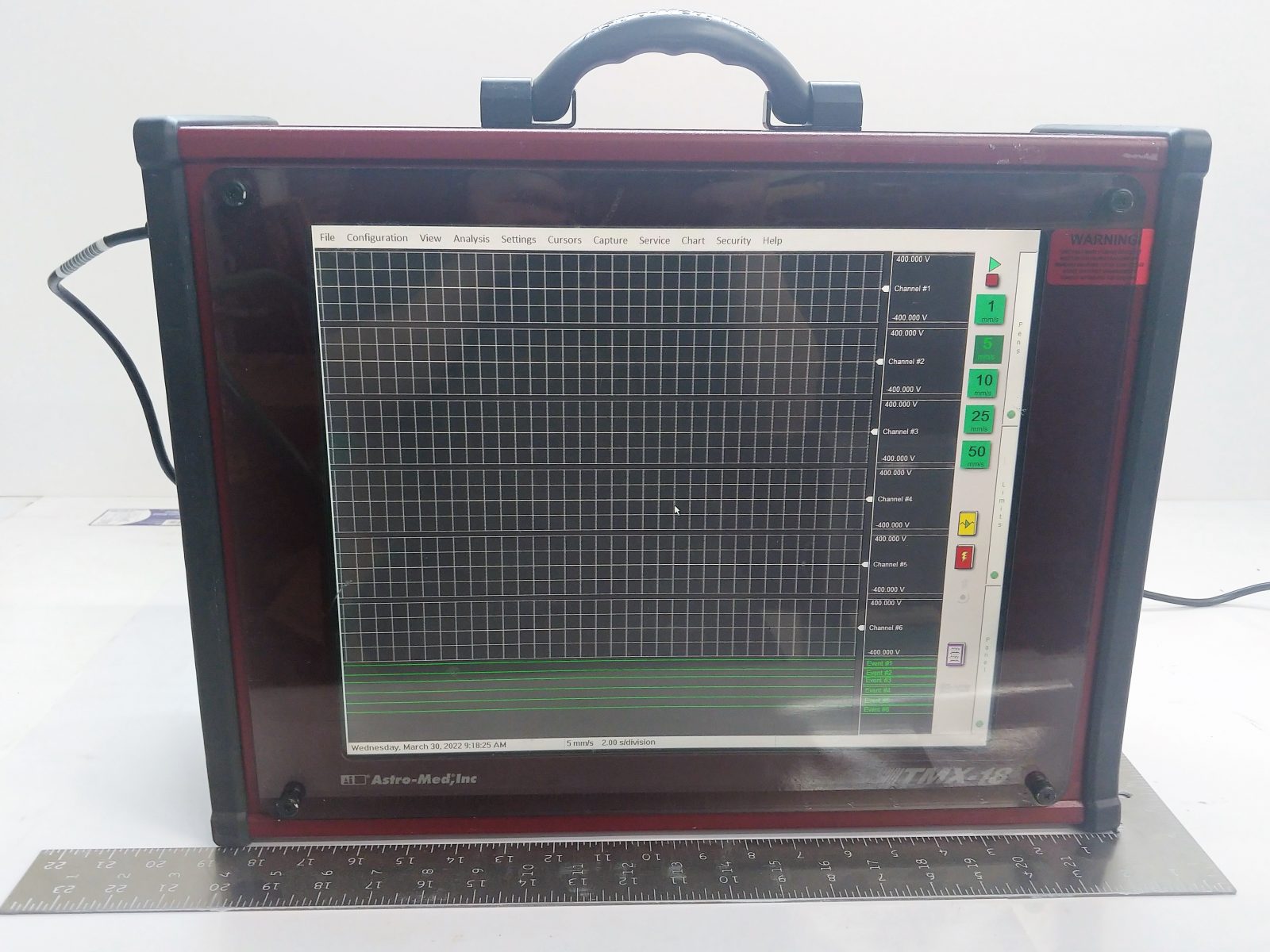

  • 17” LCD High-Resolution Touch Screen Display
  • Dedicated 1 Byte removable Data Capture Hard Drive
  • 800 kHz Sample Rate Per Channel
  • 100 kHz Bandwidth (module Dependent)
  • Multiple Sample Rates
  • Accepts all Optional TMX Accessories



Additional information

Weight 40 lbs
Dimensions 8 × 14 × 19 in
Channels

18
Condition

Model Number

TMX – 18
Manufacturer

Astro-Med
Scan Rate

800,000 Sa/s
Type
