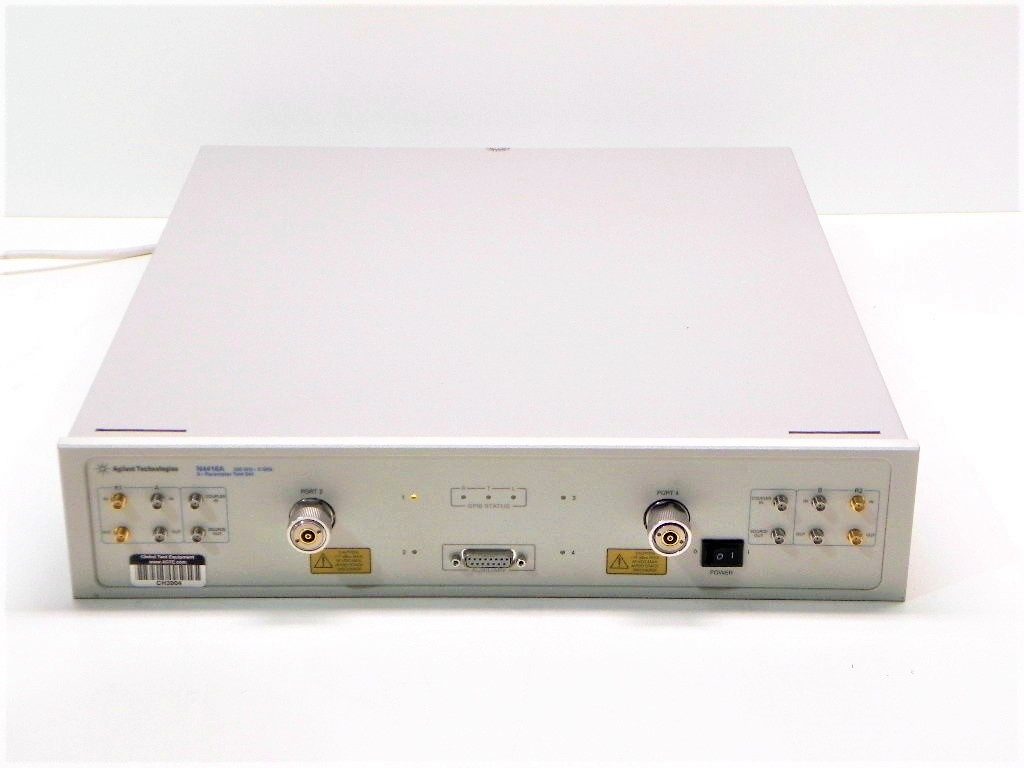

HP/Agilent N4416A Balanced Measurement S-parameter Test Set
N4416A

Keysight N4416A Balanced Measurement S-parameter Test Set, 300 kHz to 6 GHz


General Inquiries/Quote Request
Rental/Lease Information Request

Original price was: $950.00.Current price is: $850.00.

1 in stock

The HP/Agilent N4416A S-parameter test set is a key component of an Agilent physical layer and balanced-measurement system. When combined with an Agilent PNA Series E8356A, E8357A, or E8358A. Option 015 vector network analyzer and an external PC equipped with an IEEE-488 GPIB card, this test set makes characterizing high-speed digital interconnects as well as, fully balanced or balanced-to-single-ended RF components a lot easier.

The N4416A S-parameter test set requires the N4425A Balanced Measurement System software or the N1930A Physical Layer Test System software for control of the 4-port VNA system, calibration, and data display and analysis.

SKU: KEYN4416A Categories: , Tag:
Brand:

Description

  • The following features apply to a complete balanced-measurement system:
  • Display conventional (single-ended) and mixed mode S-parameters
  • Re-normalize test data for non-50-ohm devices
  • Achieve high measurement accuracy with full four-port vector error correction
  • Perform fast, accurate, automatic calibrations with easy to use N4430A four-port electronic calibration (ECal) module
  • Calculate important parameters with powerful user-defined displays
  • Gain additional insight with time domain analysis option

Accessories

Part Number Description
Qty
Power Cord
1
N4413-90001 Users Guide
1
N4693-90001 ECal Module Reference Guide
1

Options

Option Description
1CP Rack Mount Kit
B20 Set of 4 Test Port Cables

Additional information

Weight 42 lbs
Dimensions 12 × 22 × 26 in
Condition

Model Number

N4416A
Manual

HP/Agilent N4416A User Guide https://4gte.com/index.php/filemanager/datasheet/download/id/505/
Manufacturer

HP/Agilent
Type
