Keysight N6700C Low-Profile Modular Power System Mainframe, 400W


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

$2,000.00

20 in stock

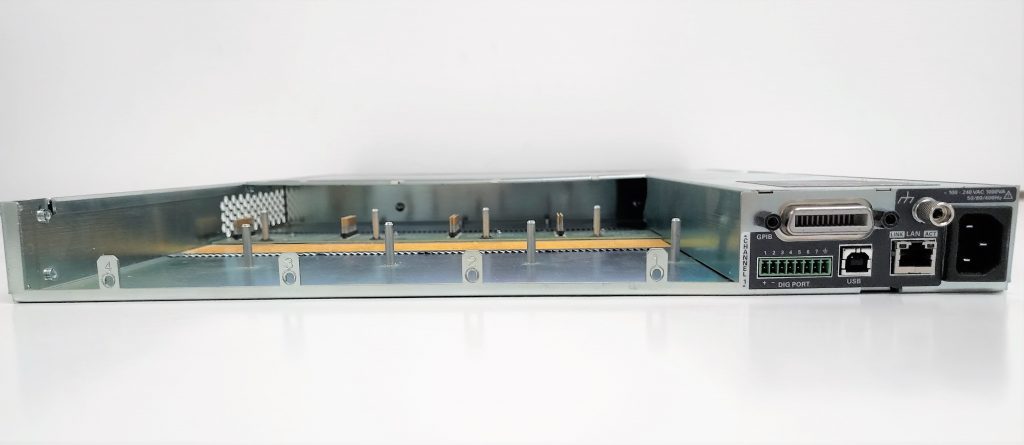

Agilent HP Keysight N6700C Low-Profile Modular Power System Mainframe, 400W

Unit function checked and firmware updated.

For integration into test benches and remote control applications via a PC, the N6700 power supply can be controlled via the standard USB, GPIB or LAN interface. The N6700 is fully LXI compatible and offers an integrated web server for remote control over LAN.



SKU: KEYN6700C Category: Tag:
Brand:

Description

Agilent HP Keysight N6700C Low-Profile Modular Power System Mainframe, 400W

    • Modular design
    • Maximum output power 400W for all outputs common
    • Over 30 DC power modules up to max. 150V / 50A available
  • 4 outputs with fine sense (sense) for the test voltage supply
  • Parallel / serial switching of outputs possible
  • Readback of current and voltage (integrated in power supply modules)
  • Memory for device settings
  • Synchronization to other measuring devices via trigger inputs and outputs
  • Protection functions can be set for all outputs (overvoltage, overcurrent and overtemperature protection)
  • Off / On Switch for outputs (optional for the individual DC power modules)
  • Temperature controlled fan
  • Interfaces: USB 2.0, GPIB interface, LAN interface
  • LXI Class C compatible
  • Built-in web server for remote control



Additional information

Weight 25 lbs
Dimensions 12 × 22 × 26 in
