Description

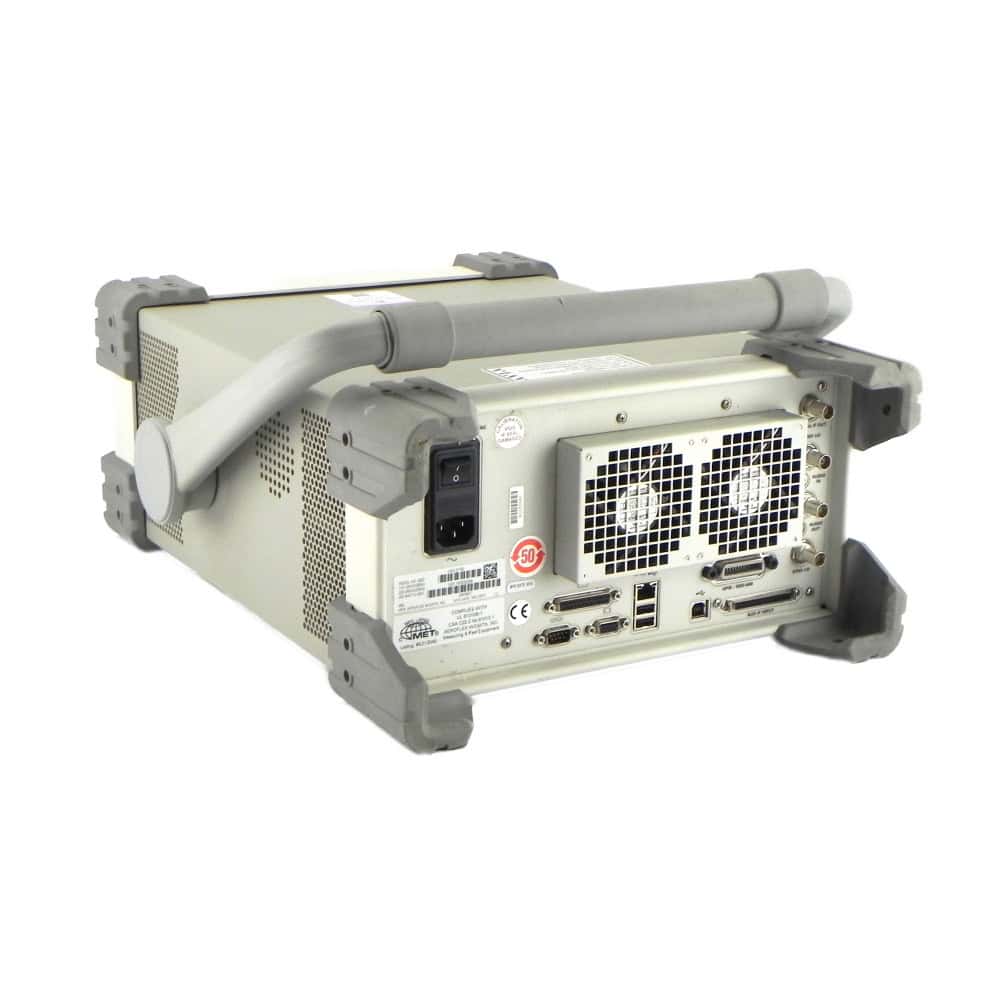

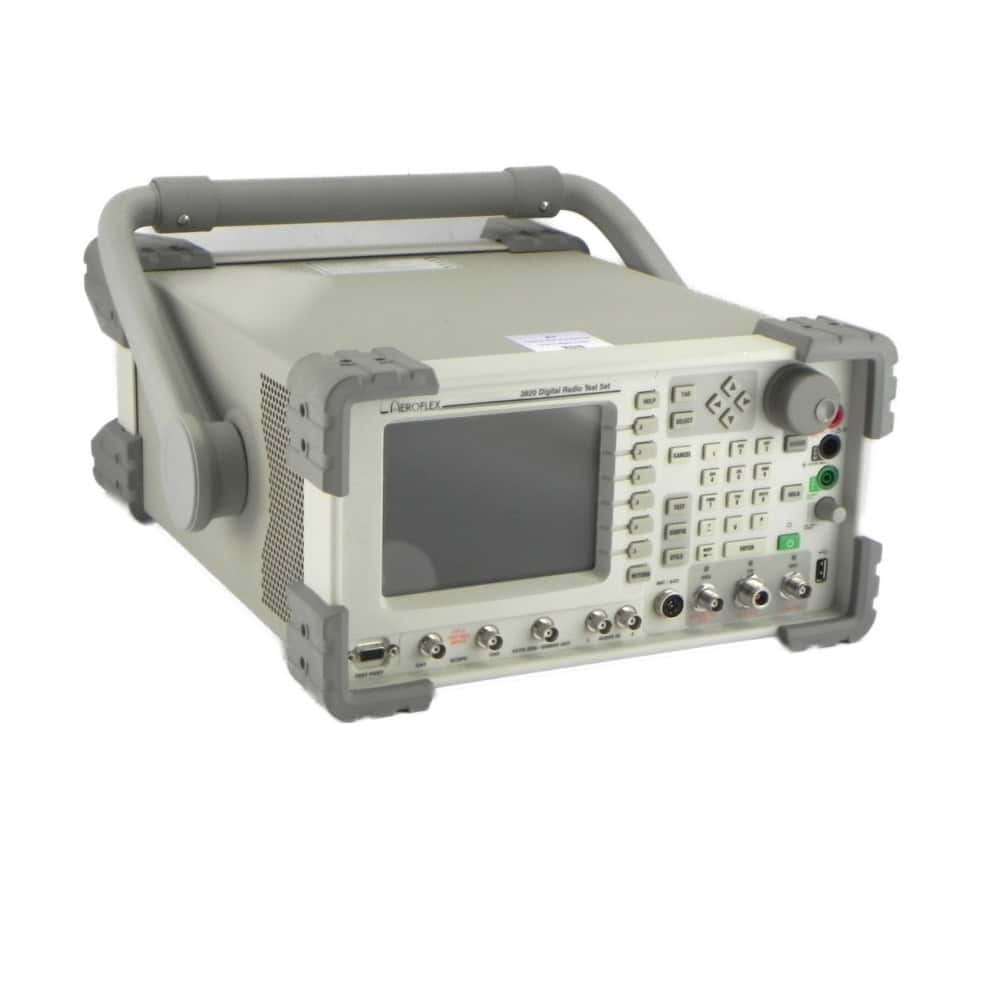

Aeroflex 3920 – 50/53/55/56/57/61/200/202/216/218/300/301/600 Communication Service Monitor
- Frequency Range: Standard operations cover 10 MHz to 1.05 GHz, serving the main VHF/UHF, 700 MHz, and 800 MHz public safety bands.

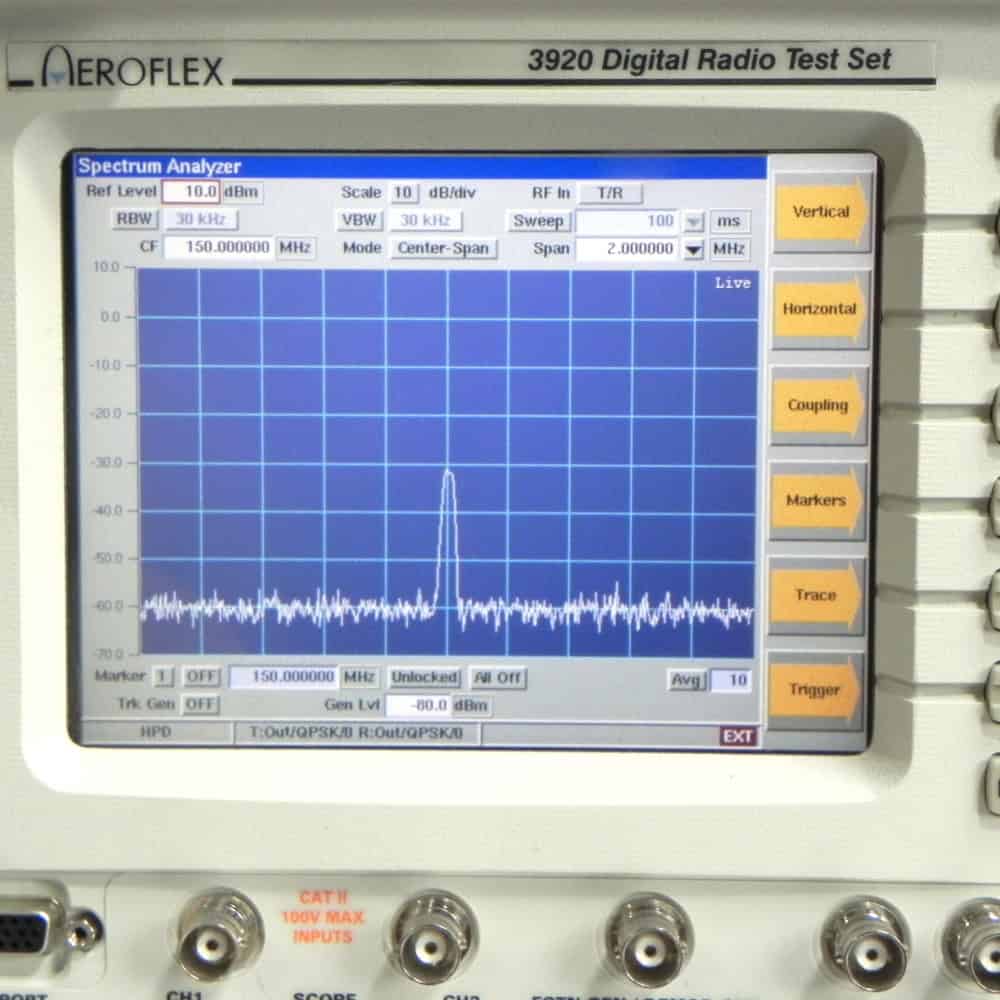

- Built-in Tools: Integrates a sensitive receiver (-140 dBm DANL spectrum analyzer), a 4 MHz dual-channel oscilloscope, and high-accuracy audio function generators.
- Timebase Calibration: Crucial for precise alignments, it supports a high-stability internal reference clock and accepts external atomic clock inputs.

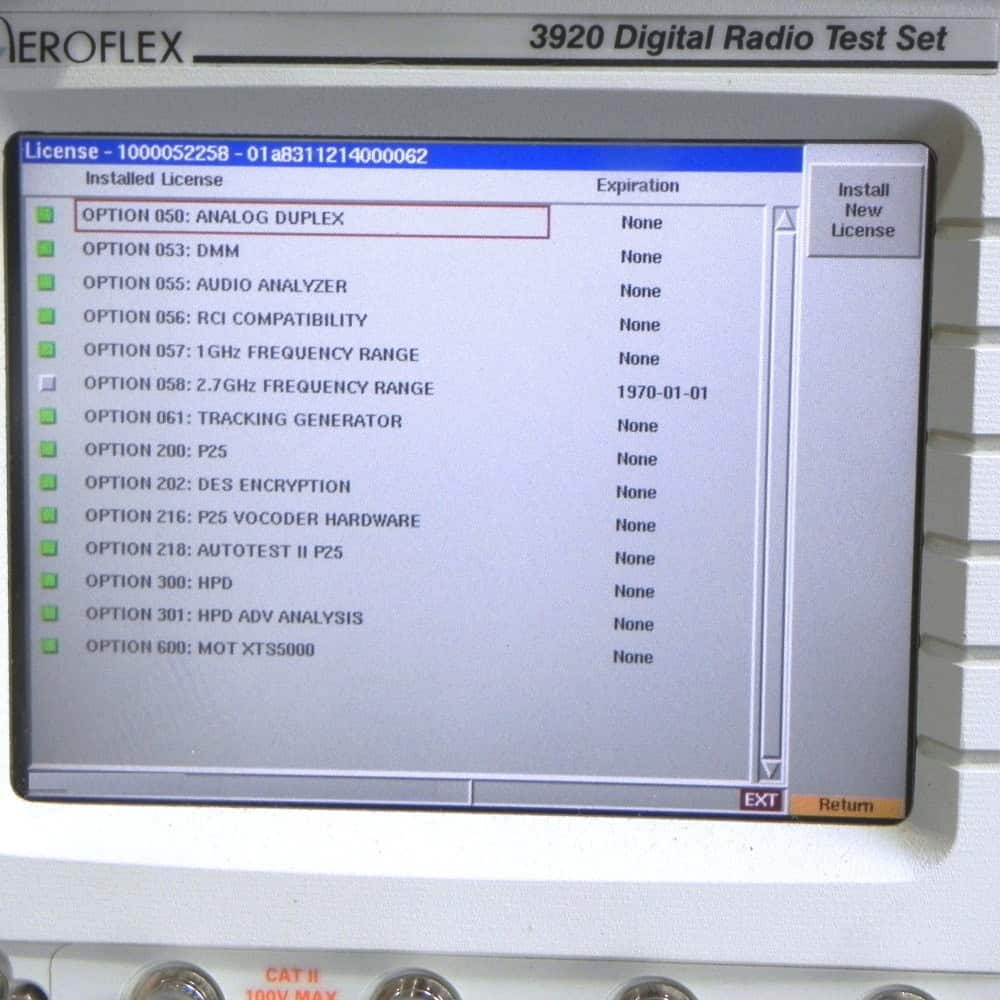

- Option 50: Analog Duplex Mode
Option 53: Digital Multimeter (DMM)
Option 55: Audio Analyzer
Option 56: RCI Compatibility
Option 57: 1 GHz Frequency Range
Option 61: Tracking Generator
Option 200: P25 Conventional Operation
Option 202: P25 Phase II TDMA Operation
Option 216 & Option 218: P25 Advanced/Adjacent Test Frameworks
Option 300: Traditional Chinese Language GUI
Option 301: Spanish Language GUI
Option 600: Motorola ASTRO 25 Series Auto-Test/Align Support
Option 216 (OPT216) & Option 218 (OPT218): P25 Advanced/Adjacent Test Frameworks
Option 300 (OPT300): Traditional Chinese Language GUI
Option 301 (OPT301): Spanish Language GUI
Option 600 (OPT600): Motorola ASTRO 25 Series Auto-Test/Align Support
