9 kHz to 1.1 GHz/2.2 GHz/3.3 GHz
SSB phase noise:<-122 dBc (1 Hz)(at f = 1 GHz, .f = 20 kHz)
Setting times <10 ms
High level accuracy (deviation <0.5 dB at levels >-120 dBm)
High reliability through electronic attenuator
Digital frequency and level sweep
AM/FM/.M.
The TDS3000B Series oscilloscope packs the power of digital phosphor waveform acquisition technology, automatic anomaly detection, web-based remote control and five application-specific modules into a lightweight, battery-capable design.
The TDS3014B is a 4-channel, 100MHZ Oscilloscope with a sample rate of 1.25 GS/s.
TDS3GV = GPIB, VGA, RS-232 Interface Module
Tektronix TDS3014B Digital Phosphor Oscilloscope, 100 MHZ, 4-channel with Options TDS3GV and (2) P6101B Probes
Read More
The HP/Agilent E9304A Average Power Sensor is designed to measure complex digital modulation formats – including those used in today’s wireless communication, satellite and cable TV systems. The E9304A can also measure multi-tone and continuous-wave (CW) signals.
Read More
Offering up to 200 MHz bandwidth and 1 GS/s sample rate, the MSO/DPO2000B Mixed Signal Oscilloscope Series provides advanced debug features at an entry-level price. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, FilterVu™ low-pass filter and innovative Wave Inspector® controls, and the MSO/DPO2000B Series provides the feature-rich tools you need to simplify and speed debug of your complex design. All backed by a 5-year warranty.
Read More
Agilent HP Keysight N6700C Low-Profile Modular Power System Mainframe, 400W
Unit function checked and firmware updated.
For integration into test benches and remote control applications via a PC, the N6700 power supply can be controlled via the standard USB, GPIB or LAN interface. The N6700 is fully LXI compatible and offers an integrated web server for remote control over LAN.
Read More

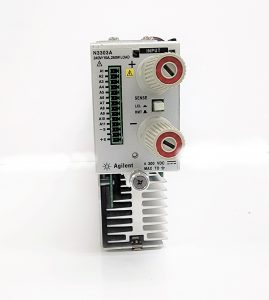

HP/Agilent Keysight N3303A 250 Watt Electronic Load Module
Module is Calibrated
• Increase test system throughput
• Lower cost of ownership
• Decrease system development time
• Increase system reliability
• Increase system flexibility
• Stable operation down to zero volts
• dc connection terminal for ATE applications
The SMIQ04B Signal Generator offers a variety of modulation options for today’s testing needs from 300 kHz to 4.4 GHz. Using Digital Signal Processor (DSP) technology, the SMIQ04B produces high accuracy broadband digital modulation signals supporting a variety of digital radio protocols. The SMIQ04B features a broadband I/Q modulator with excellent vector accuracy. Analog modulation is also provided making the SMIQ04B an excellent choice to support current and future testing needs.
Read More
Offering up to 2 GHz bandwidth and 10 GS/s sample rate, the MSO/DPO5000 Mixed Signal Oscilloscope Series features affordable, yet powerful Windows®-based models. With over 10 different application software packages available, you can test many different applications with a single instrument. Exclusive Tektronix features such as FastAcq with DPX® technology and a superior suite of triggers enable you to quickly find intermittent events that other oscilloscopes miss. Combine that with comprehensive analysis tools and innovative Wave Inspector® controls, the MSO/DPO5000 Series provides the feature-rich tools you need to simplify and speed debug of your complex design.
Read More
