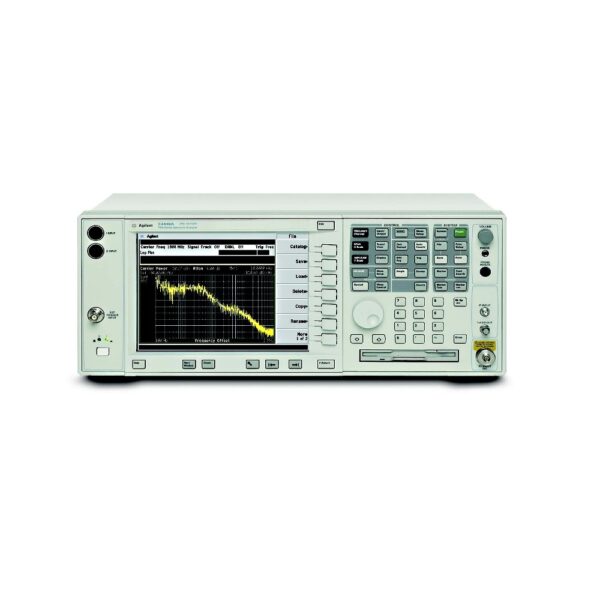

E4448A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 50 GHz
Our E4448A’s are provided with NIST Traceable calibration and a one year warranty. Please contact us if Z540 or 17025 calibration is required.
| Image | Stock | Price | Action | Description |
|---|---|---|---|---|
|
1 | $ 24950.00 | Keysight E4448A-115/215/AYZ PSA Spectrum Analyzer, 3 Hz to 50 GHz | |
|
0 | $ | Keysight E4448A-110/115/219/226/B7J/H70/H7L PSA Spectrum Analyzer, 3 Hz to 50 GHz | |
|
0 | $ | Keysight E4448A-111/115/219/226/266/1DS/AYZ/B7J/H70 PSA Spectrum Analyzer, 3 Hz to 50 GHz |
E4448A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 50 GHz
| Weight | 50 lbs |
|---|---|
| Dimensions | 18 × 24 × 31 in |
| E4448A | KEYE4448A-115/215/AYZ, KEYE4448A-110/115/219/226/B7J/H70/H7L, KEYE4448A-111/115/219/226/266/1DS/AYZ/B7J/H70, 111/115/1DS/219/226/266/AYZ/B7J/H70 |
| Option Number | Name | Description |
| 0B0 | Manual Set on CD-ROM Only | The documentation CD-ROM contains the standard documentation set as well as Adobe Acrobat Reader with Search. |
| 0B1 | Additional Manual Set | An additional set of the standard documentation shipped with the analyzer. See “Initial Inspection” on page 9 for information about the standard documentation set. |
| 0BW | Service Documentation | The Service guide describes assembly-level troubleshooting procedures, provides a parts list, and documents post-repair procedures. |
| 1CM | Rack Mount Kit | Includes rack mount flanges and hardware. Used to rack mount analyzers without front handles (available as P/N 5063-9215). |
| 1CN | Front Handle Kit | Available as P/N 5063-9228. |
| 1CP | Rack Mount Kit with Handles | Includes the parts necessary to rack mount an analyzer with front handles attached (available as P/N 5063-9222). (Includes handles.) |
| 1CR | Rack Slide Kit | Available as P/N E4406-60115. Rack slides allow the analyzer to be pulled out while the analyzer is secured to the rack. |
| 1DS | Preamplifier | An internal preamplifier assembly. Not required when Option 110 is installed. Option 110 cannot be installed if Option 1DS is installed. Frequency Range: 100 kHz to 3 GHz |
| 15 | 6 GHz Measurement Accessory Kit | Includes accessories necessary to set up return loss and loss/gain measurements. Used with Option 215. |
| 107 | Audio Input, 100 kW | Audio signal analysis capability that works with the Option 233 Measuring Receiver System. Available in all models. Option 107 cannot be installed if Option 122 or 140 is installed. Requires Option 233. |
| 110 | RF/mW Internal Preamplifier | An internal preamplifier assembly that covers all frequency bands. Available in all models. Option 110 cannot be installed if Option 1DS is installed. Frequency Range: 10 MHz to 50 GHz |
| 111 | USB Device Side I/O Interface | Provides a rear-panel USB interface connector (device side I/O only). |
| 115 | 512 Mb User Memory | Provides additional memory to accommodate a greater number of applications. Available in all models. Option 115 cannot be installed if Option 117 is installed. |
| 117 | Secure Memory Erase | Provides the ability to quickly and easily perform a security erase, deleting all user-stored data, without affecting the usability of the analyzer. Option 117 cannot be installed if Option 115 is installed. |
| 122 Not available for E4447A | 80 MHz Bandwidth Digitizer | Adds an alternative 80 MHz wide IF path for making measurements. Cannot be installed if Option 107 is installed. Additional measurement accuracy can be achieved using the External Calibration Wizard Option 235, or with the 89600 Vector Signal Analyzer Application calibration. The 80 MHz functionality is available as part of the added Basic Mode, WLAN Personality (Option 217), and Flexible Digital Modulation (Option 241). Basic Mode includes the measurements: spectrum (frequency domain) waveform (time domain) Requires Option 123. |
| 123 | Switchable Preselector Bypass | Allows you to bypass the preselector filter at the input of the spectrum analyzer when making measurements in the 3 to 50 GHz range. This improves the sensitivity and increases the available measurement dynamic range. However it allows the analyzers internal mixing products and image response signals to be visible on the display, in addition to the actual desired signal response. This option is available in all models. Option 123 cannot be installed if Option AYZ is installed. |
| 124 | Y-axis Video Output | Provides a 0 to 1 V signal that corresponds to the bottom and top of the display graticule, respectively. The output voltage tracks the Y-axis position of the trace data while the analyzer is sweeping. (This output is similar to the 8566B Video Out.) |
| 140 Not available for E4447A | 40 MHz Bandwidth Digitizer | Adds an alternative 40 MHz wide IF path for making measurements. Cannot be installed if Option 107 is installed. The 40 MHz functionality is available as part of the added Basic Mode, WLAN Personality (Option 217), and Flexible Digital Modulation (Option 241). Basic Mode includes the measurements: spectrum (frequency domain) waveform (time domain) Requires Option 123. |
| 202 | GSM with EDGE Measurement Personality | General transmitter measurement: transmit power Provides GSM (GMSK modulation) transmitter measurements: power vs. time phase and frequency error output RF spectrum transmit band spurs Provides EDGE (8PSK modulation) transmitter measurements: EVM power vs. time output RF spectrum transmit band spurs Requires Option B7J hardware. |
| 204 | 1xEV-DO Measurement Personality | Provides 1xEV transmitter measurements: channel power ACPR intermodulation spectrum emission mask occupied BW code domain power (pilot) EVM (pilot) QPSK EVM power statistics CCDF Requires Option B7J hardware. |
| 210 | HSDPA/HSUPA Measurement Personality | Provides High-Speed Downlink/Uplink Packet Access to support 16QAM and modulation accuracy. Requires Option BAF. Requires Option B7J hardware. |
| 211 | TD-SCDMA Power Measurement Personality | Measures the power profile of TD-SCDMA BTS and MS. |
| 212 | TD-SCDMA Modulation Analysis Measurement Personality | Provides modulation analysis for TD-SCDMA BTS and MS, such as EVM, code domain analysis, and time domain or frequency domain analysis. Requires Option B7J. |
| 213 | HSDPA/8PSK for TD-SCDMA Modulation Analysis Measurement Personality |
Provides measurements for high-speed downlink packet access over TD-SCDMA to support HSDPA/8PSK. Requires Option 212. |
| 214 | 1xEV-DV | Supports 8PSK and 16QAM modulation analysis. Requires Option B78 and B7J. Option 1DS is recommended. Includes measurements: Composite Rho Code Domain tests |
| 215 | External Source Control Measurement Personality | Adds external source control to the PSA analyzer for stimulus-response measurements. |
| 217 Not available for E4447A |
WLAN Measurement Personality | Provides WLAN transmitter measurements for 802.11 a/b/g. Requires Option 122 or 140. Also requires Option 123 for center frequencies above 3 GHz. |
| 219 | Noise Figure Measurement Personality | Provides noise figure measurements: Limit lines Loss compensation Extended frequency (measures up/down converters) You need the preamp option: Option 1DS to have specified performance below 3 GHz, or Option 110 to have nominal performance over the entire frequency range. |
| 226 | Phase Noise Measurement Personality | Provides phase noise measurements: Monitor spectrum Spot frequency Log plot |
| 233 | Measuring Receiver Personality and PC software | This option allows you to use your PSA, an Agilent power meter and N5532A Sensor module as a measuring receiver system through the PSA user interface (UI). It also provides PC software, as an extension of the built-in measuring receiver personality, offering graphic and remote UI on an external PC. A sensor module to power meter adapter, N5532A Option 019, is required for use with N1911A/12A power meters. Option 233 is available in all models. Requires Option 107 for Audio measurements. |
| 23A | AM/FM/PM Triggering for use with the Measuring Receiver Personality | Option 233 must be installed before Option 23A Provides the trigger support in the AM Depth, FM Deviation, and PM Deviation measurements of the Measuring Receiver personality to detect the settling time for carrier frequency change. The triggering types supported are Free Run, Video (IF Envelope), External Front, External Rear, and RF Burst. |
| 23B | CCITT Audio Filter for use with the Measuring Receiver Personality | Option 233 must be installed before Option 23B Adds the CCITT weighting filter, a 30 kHz and an 80 kHz low pass filter, and a 400 Hz high pass filter to the audio measurements of the Measuring Receiver personality. (These include Audio Frequency, Audio AC Level, Audio Distortion, and Audio SINAD.) |
| 235 Not available for E4447A |
80 MHz Digitizer External Calibration Wizard and License | This calibration software runs on an external PC to generate a file of correction factors for PSAs with Option 122. You get improved measurement accuracy using this correction file. |
| 239 | EMC Analyzer Personality | Adds EMC measurement capability. With the addition of the N9039A RF Preselector, allows compliant EMC measurements. Selected signal sources are required for system alignment. |
| 241 | Flexible Digital Modulation Analysis | Provides flexible demodulating analysis for measuring many different formats of digital modulation, including: MSK type 1 and type 2 EDGE QPSK and offset QPSK 8PSK BPSK DQPSK and Pi/4 DQPSK D8PSK QAM 16, 32, 64, 128, 256 FSK 2, 4, 8 states Requires Option 122 or 140 for symbol rates > 10 MHz |
| 266 | Programming Code Compatibility Suite | Lets you select one of three different modes that let you use a limited set of 8560 Series, 8566B/8568B, or 8590 Series programming commands. These modes let you control the PSA Series analyzers with code from other spectrum analyzer families. When these modes are enabled, the instruments native SCPI commands are disabled if the remote language selected is not SCPI. |
| ANE | Enhanced Memory Upgrade | For early instruments, replaces existing 48 Mb with 64 Mb memory on CPU, providing additional memory for storing optional measurement personalities. The 64 Mb memory was shipped standard in all PSA instruments with serial numbers ³ US/MY 42220000. It is recommended that Option 115 (512 Mb user memory) be purchased to accommodate a greater number of applications. |
| AYZ | External Mixing | Provides the ability to use the HP/Agilent 11970 Series harmonic mixers, and HP/Agilent 11974 preselected harmonic mixers with the Agilent E4440A, E4446A, E4447A, or E4448A analyzer to extend the frequency range to 110 GHz. Operation to 325 GHz is also possible with non-HP/Agilent mixers. Option AYZ cannot be installed if Option 123 is installed. |
| B78 | cdma2000 Measurement Personality | Provides cdma2000 transmitter measurements: channel power ACPR intermodulation spectrum emission mask occupied BW code domain power modulation accuracy (composite rho) QPSK EVM power statistics CCDF Requires Option B7J hardware. Requires Option 214 for 1xEV-DV functionality. |
| B7J | Digital Demod Hardware | Adds 1 dB step, electronic attenuator in addition to the existing manual attenuator. This is required for the personality options: BAC, BAE, BAF, B78, 202, 204, 210, 212, 213, and 214. This option also adds the functionality of Basic Mode, including the measurements: spectrum (frequency domain) waveform (time domain) |
| BAB (E4440A only) |
APC 3.5 Input Connector | Replaces the standard type-N female connector with an APC 3.5-mm male connector. |
| BAC | cdmaOne Measurement Personality | Provides IS-95 and J-STD-008 transmitter measurements: channel power modulation accuracy (rho) code domain power ACPR spur close Requires Option B7J hardware. |
| ANE | Enhanced Memory Upgrade | For early instruments, replaces existing 48 Mb with 64 Mb memory on CPU, providing additional memory for storing optional measurement personalities. The 64 Mb memory was shipped standard in all PSA instruments with serial numbers ³ US/MY 42220000. It is recommended that Option 115 (512 Mb user memory) be purchased to accommodate a greater number of applications. |
| AYZ | External Mixing | Provides the ability to use the HP/Agilent 11970 Series harmonic mixers, and HP/Agilent 11974 preselected harmonic mixers with the Agilent E4440A, E4446A, E4447A, or E4448A analyzer to extend the frequency range to 110 GHz. Operation to 325 GHz is also possible with non-HP/Agilent mixers. Option AYZ cannot be installed if Option 123 is installed. |
| B78 | cdma2000 Measurement Personality | Provides cdma2000 transmitter measurements: channel power ACPR intermodulation spectrum emission mask occupied BW code domain power modulation accuracy (composite rho) QPSK EVM power statistics CCDF Requires Option B7J hardware. Requires Option 214 for 1xEV-DV functionality. |
| B7J | Digital Demod Hardware | Adds 1 dB step, electronic attenuator in addition to the existing manual attenuator. This is required for the personality options: BAC, BAE, BAF, B78, 202, 204, 210, 212, 213, and 214. This option also adds the functionality of Basic Mode, including the measurements: spectrum (frequency domain) waveform (time domain) |
| BAB (E4440A only) |
APC 3.5 Input Connector | Replaces the standard type-N female connector with an APC 3.5-mm male connector. |
| BAC | cdmaOne Measurement Personality | Provides IS-95 and J-STD-008 transmitter measurements: channel power modulation accuracy (rho) code domain power ACPR spur close Requires Option B7J hardware. |
| Option Number | Name | Description |
| BAE | NADC/PDC Measurement Personality | Provides NADC transmitter measurements: ACP EVM (error vector magnitude) Provides PDC transmitter measurements: ACP EVM (error vector magnitude) occupied BW Requires Option B7J hardware. |
| BAF | W-CDMA Measurement Personality | Provides 3GPP W-CDMA transmitter measurements: channel power ACPR (ACLR) intermodulation multi carrier power spectrum emission mask occupied BW code domain power modulation accuracy (composite EVM) QPSK EVM power statistics CCDF Requires Option B7J hardware. Requires Option 210 for addition of HSDPA/HSUPA functionality. |
| Power cord | |
| Manuals | |
| USB Cable (Option 111 only) | Connects PSA USB to USB on a PC, part number 8121-1074 |
| Adapter 1250-2187 | 2.4 mm(f) to K(f) front panel connector adapter, part number 1250-2187 |
| Adapter 1250-2188 | 2.4 mm(f) to 2.4 mm(f) front panel connector adapter, part number 1250-2188 |
