The HP/Agilent N4416A S-parameter test set is a key component of an Agilent physical layer and balanced-measurement system. When combined with an Agilent PNA Series E8356A, E8357A, or E8358A. Option 015 vector network analyzer and an external PC equipped with an IEEE-488 GPIB card, this test set makes characterizing high-speed digital interconnects as well as, fully balanced or balanced-to-single-ended RF components a lot easier.
The N4416A S-parameter test set requires the N4425A Balanced Measurement System software or the N1930A Physical Layer Test System software for control of the 4-port VNA system, calibration, and data display and analysis.
Read More
The HP/Agilent N4416A S-parameter test set is a key component of an Agilent physical layer and balanced-measurement system. When combined with an Agilent PNA Series E8356A, E8357A, or E8358A. Option 015 vector network analyzer and an external PC equipped with an IEEE-488 GPIB card, this test set makes characterizing high-speed digital interconnects as well as, fully balanced or balanced-to-single-ended RF components a lot easier.
The N4416A S-parameter test set requires the N4425A Balanced Measurement System software or the N1930A Physical Layer Test System software for control of the 4-port VNA system, calibration, and data display and analysis.
Read More
The Agilent N4421BH67 S-parameter test set, combined with 2-port PNA or PNA-L network analyzer and Option 550, offers a complete solution for 4-port measurements.
Please note, this test set is not subject to a calibration test. The test set’s performance characteristics are parameters that the product is expected to meet before it leaves the factory. A functional test can verify proper performance of all microwave components within the test set.
Read More

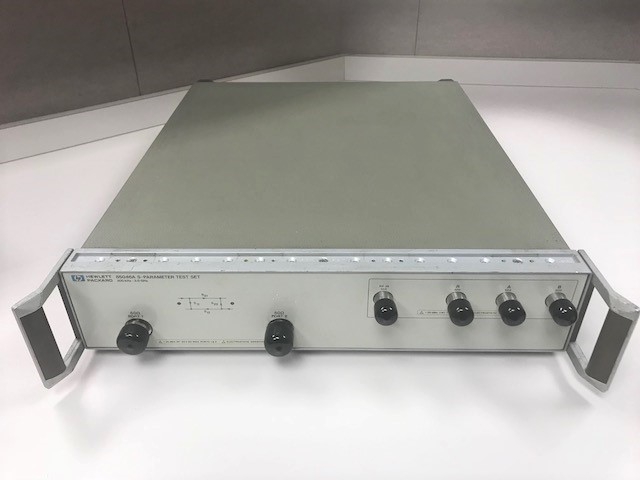

The Agilent 85046A test set provides the capability to simultaneously measure the transmission and reflection characteristics of 50 ohm devices. The test set is controlled from the analyzer and includes programmable step attenuators. It can be used with the Agilent 8753C, 8753D, 8753ES, 4395, 4396 and selected 8702 lightwave component analyzer configurations.
