Tektronix 2465B Analog Oscilloscope, 4-Channel, 400 MHz
The Tektronix 2465B, regarded as the Cadillac of Analog scopes, offers useful features that are hard to replicate in digital units. The 2465B has a bandwidth of 400MHz, 4 channels, up to 500 Ps/div timing resolution, offers auto setup and automatic measurements, the ability to save and recall Front-panel setups, provides cursor measurements and has 1% timing accuracy. The analog display allows gray scaling and persistence, whereby faster signals appear fainter than slower signals. And when an event only occurs occasionally in a repetitive signal, the anomaly will fade quicker and look dimmer than the rest of the waveform, which can provide critical information when analyzing complex designs. The 2465B also offers a real time display that responds instantly to changing signal conditions. Since it doesn’t have to acquire and then process signal information before displaying it like a digital scope, it can trigger on many more waveforms per second. And with a complete selection of trigger modes, the 2465B can display any signal regardless of its complexity.
The Agilent 54600B 2 Channel 100 MHz Oscilloscope is ideal for production test, field service and education, where you need solid, dependable scopes at a low price. In fact, with prices this low, you can afford to equip your entire staff without sacrificing measurement capability or confidence in the results.

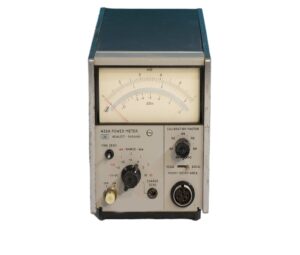

The Model 431B Power Meter with temperature compensated thermistor mounts, measures rf power from 10 microwatts (-20dbm) to 10 milliwatts (+10 dbm) in the 10-mc to 40-GC frequency range. Direct reading accurancy of the instrument is +3% of full scale
The Tektronix 2213A is a 60 MHz Dual Trace Analog Oscilloscope.
2 channel, 300MHz bandwidth, 500MS/s Oscilloscope. The Tektronix 2440 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix 2440 oscilloscope’s simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
The Agilent E4422B RF Signal Generator offers excellent performance with superior quality, reliability and worldwide support — at an affordable price. The first in a new generation of signal generators, it provides excellent frequency and level control, and wide analog modulation capabilities. It is ideally suited to meet the demanding requirements of today’s receiver test, component test and local oscillator applications.
The Agilent E4421B RF Signal Generator offers excellent performance with superior quality, reliability and worldwide support — at an affordable price. The first in a new generation of signal generators, it provides excellent frequency and level control, and wide analog modulation capabilities. It is ideally suited to meet the demanding requirements of today’s receiver test, component test and local oscillator applications.
The Agilent 54616B oscilloscope continues in the tradition of the popular 54600-series of digitizing scopes by delivering the comfortable feel of an analog oscilloscope with the power of a digital architecture. In addition, this oscilloscope offers an incredibly high level of digitizing performance to give you confidence in your critical measurements.
