Vitrek 944i Dielectric Tester

SKU: VIT944i Category: Tag:


Vitrek 944i Dielectric Tester

  • AC & DC Hipot plus Insulation Resistance and ground continuity in a single feature rich compact instrument
  • AC/DC Hipot to 5VK standard, 7 and 10 KVDC optional
  • Easy to use full menu prompting, walks you through the test set-up
  • Test database stores 200 test steps for easy recall
  • Powerful 35mA Sourcing capability
  • On-board phase detection measures total, real or “imaginary” leakage current
  • Continuous Output frequencies from 50 to 100Hz
  • IR measurement to 65Gig ohms
  • Continuity measurement to 1 milli-ohm
  • Leakage current measurement to 1 nano-amp

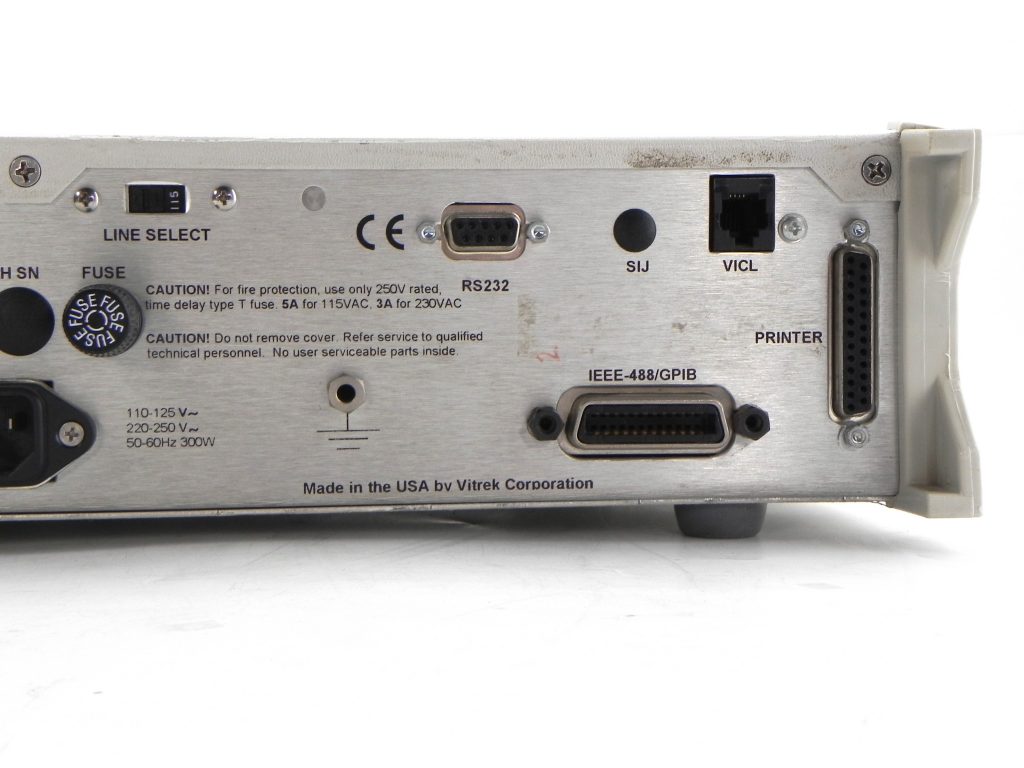

  • Optional IF-4 Interface package includes GPIB, RS232, VICL & Printer Ports
  • Separate Ramp & Dwell, Min & Max current limits
  • Covers-on Automatic Calibration
  • Built-in controls for HV scanner and Ground Bond Tester
  • CE Mark Certified to EN61010

Additional information

Weight 35 lbs
Dimensions 4 × 17 × 17 in
