Home » Products » Repairable Vector VNA Cables to 67 GHz, 2-Year Warranty, Velocity Microwave
TPX292M-NMDF-84

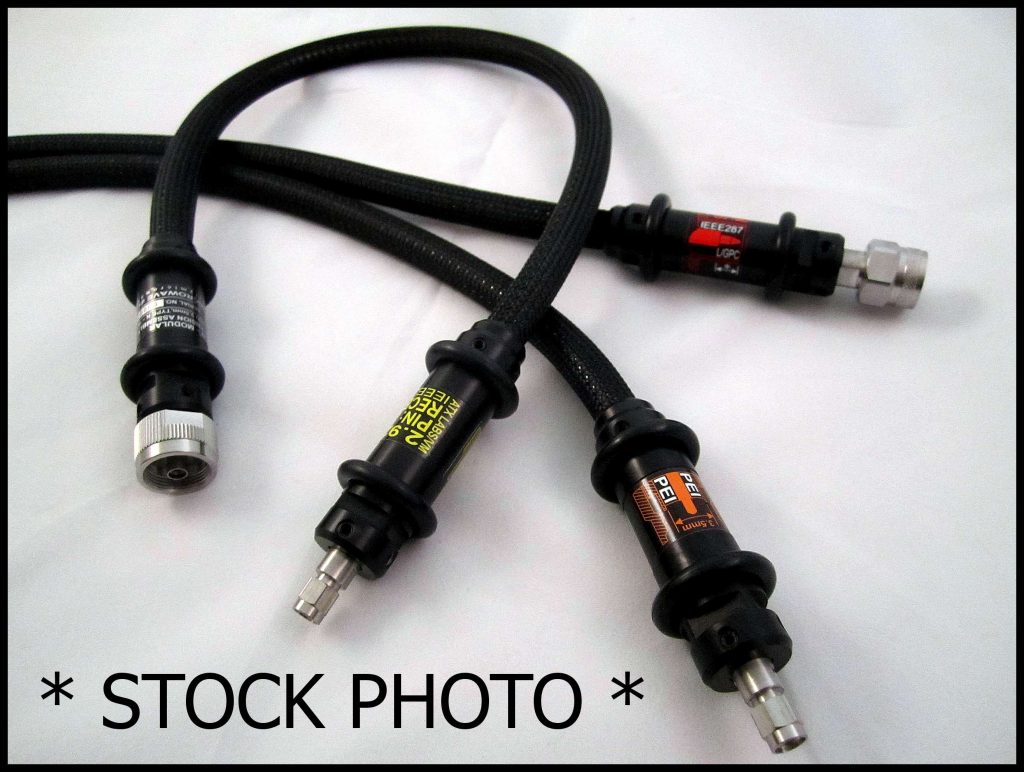

Repairable Vector VNA Cables to 67 GHz, 2-Year Warranty, Velocity Microwave

$997.50 – $3,695.00

Vector Data SheetVECTOR TPX Data Sheet

MODULAR = REPAIRABLE = SUSTAINABLE = EXTENDED LIFE = LOWER COST

Velocity Microwave has revolutionized high performance test cables with the industry’s first completely modular design. This design allows any of the components in the assembly to be replaced so as to extend the service life of the assembly. No longer will you need to scrap unrepairable test port cables!

Vector series is designed for use with VNAs.

Already own one?

Image Stock Price Action Description
100 $ 1495 18 GHz, 26" Cable, Type-N (M) to Type N (M) Connectors
100 $ 1495 18 GHz, 26" Cable, Type-N (M) to Type-N (F) Connectors
100 $ 1495 18 GHz, 26" Cable, Type-N (F) to Type-N (F) Connectors
100 $ 1595 18 GHz, 39" Cable, Type-N (M) to Type-N (M) Connectors
100 $ 1595 18 GHz, 39" Cable, Type-N (M) to Type-N (F) Connectors
100 $ 1595 18 GHz, 39" Cable, Type-N (F) to Type-N (F) Connectors
4 $ 1825.00 26.5 GHz, 26" cable, 3.5mm NMD (F) to 3.5 mm (M) Connectors
99 $ 1895 26.5 GHz, 26" cable, 3.5mm NMD (F) to 3.5 mm (F) Connectors
1 $ 997.50 26.5 GHz, 39" cable, 3.5mm NMD (F) to 3.5 mm (M) Connectors
100 $ 1995 26.5 GHz, 39" cable, 3.5mm NMD (F) to 3.5 mm (F) Connectors
100 $ 2295 40 GHz, 26" cable, 2.92mm NMD (F) to 2.92 mm (M) Connectors
100 $ 2295 40 GHz, 26" cable, 2.92mm NMD (F) to 2.92 mm (F) Connectors
100 $ 2395 40 GHz, 39" cable, 2.92mm NMD (F) to 2.92 mm (M) Connectors
100 $ 2395 40 GHz, 39" cable, 2.92mm NMD (F) to 2.92 mm (F) Connectors
100 $ 2895 50 GHz, 26" cable, 2.4mm NMD (F) to 2.4 mm (M) Connectors
100 $ 2895 50 GHz, 26" cable, 2.4mm NMD (F) to 2.4 mm (F) Connectors
100 $ 2995 50 GHz, 39" cable, 2.4mm NMD (F) to 2.4 mm (M) Connectors
100 $ 2995 50 GHz, 39" cable, 2.4mm NMD (F) to 2.4 mm (F) Connectors
100 $ 3595 67 GHz, 26" cable, 1.85mm NMD (F) to 1.85mm (M) Connectors
100 $ 3595 67 GHz, 26" cable, 1.85mm NMD (F) to 1.85mm (F) Connectors
100 $ 3695 67 GHz, 39" cable, 1.85mm NMD (F) to 1.85mm (M) Connectors
100 $ 3695 67 GHz, 39" cable, 1.85mm NMD (F) to 1.85mm (F) Connectors
100 $ 2095 26.5 GHz, Hybrid Vector 26" Cable – 2.92 NMD (F) - 3.5mm (M) Connectors
100 $ 2095 26.5 GHz, Hybrid Vector 26" Cable – 2.92 NMD (F) - 3.5mm (F) Connectors
100 $ 2195 26.5 GHz, Hybrid Vector 39" Cable – 2.92 NMD (F) - 3.5mm (M) Connectors
100 $ 2195 26.5 GHz, Hybrid Vector 39" Cable – 2.92 NMD (F) - 3.5mm (F) Connectors
100 $ 2395 26.5 GHz, Hybrid Vector 26" Cable – 2.4 NMD (F) - 3.5mm (M) Connectors
100 $ 2395 26.5 GHz, Hybrid Vector 26" Cable – 2.4 NMD (F) - 3.5mm (F) Connectors
100 $ 2495 26.5 GHz, Hybrid Vector 39" Cable – 2.4 NMD (F) - 3.5mm (M) Connectors
100 $ 2495 26.5 GHz, Hybrid Vector 39" Cable – 2.4 NMD (F) - 3.5mm (F) Connectors
100 $ 2495 40 GHz, Hybrid Vector 26" Cable – 2.4 NMD (F) - 2.92mm (M) Connectors
100 $ 2395 40 GHz, Hybrid Vector 26" Cable – 2.4 NMD (F) - 2.92mm (F) Connectors
100 $ 2695 40 GHz, Hybrid Vector 39" Cable – 2.4 NMD (F) - 2.92mm (M) Connectors
100 $ 2695 40 GHz, Hybrid Vector 39" Cable – 2.4 NMD (F) - 2.92mm (F) Connectors
100 $ 1595 18 GHz, Hybrid Vector 26" Cable, 3.5mm (M) to Type-N (M) Connectors
100 $ 1595 18 GHz, Hybrid Vector 26" Cable, 3.5mm (M) to Type-N (F) Connectors
100 $ 1695 18 GHz, Hybrid Vector 39" Cable, 3.5mm (M) to Type-N (M) Connectors
100 $ 1695 18 GHz, Hybrid Vector 39" Cable, 3.5mm (M) to Type-N (F) Connectors

Description

MODULAR = REPAIRABLE = SUSTAINABLE = EXTENDED LIFE = LOWER COST

FULL 2-YEAR WARRANTY – 10-YEAR SUSTAINABILITY OF SUPPORT

Velocity Microwave has a patent-pending, revolutionary design of VNA port extension cables.  The new VM Vector series cables are repairable!  This simple concept will save you thousands of dollars over the life of the cable.  No longer will you need to replace cables that are damaged or worn out.  Each component in a Vector cable can be repaired, including field-repairable connectors.  The Vector cables are extremely rugged with a compression resistance of 800 lbs, yet remain very flexible.

The Vector cables provide best of breed phase and amplitude stability. Their Vp of 84 also insures excellent performance with temperature changes. Vector cables can also be ordered in Phase Matched sets.

Additional information

Weight 2 lbs
Dimensions N/A
Standard Configurations

Type N (M-M) 26-inch, Type N (M-F) 26-inch, Type N (F-F) 26-inch, Type N (M-M) 39-inch, Type N (M-F) 39-inch, Type N (F-F) 39-inch, 3.5NMD-3.5mm Male 26-Inch, 3.5NMD-3.5mm Female 26-Inch, 3.5NMD-3.5mm Male 39-Inch, 3.5NMD-3.5mm Female 39-Inch, 2.92NMD-2.92mm Male 26-Inch, 2.92NMD-2.92mm Female 26-Inch, 2.92NMD-2.92mm Male 39-Inch, 2.92NMD-2.92mm Female 39-Inch, 2.4NMD-2.4mm Male 26-Inch, 2.4NMD-2.4mm Female 26-Inch, 2.4NMD-2.4mm Male 39-Inch, 2.4NMD-2.4mm Female 39-Inch, 1.85NMD-1.85mm Male 26-Inch, 1.85NMD-1.85mm Female 26-Inch, 1.85NMD-1.85mm Male 39-Inch, 1.85NMD-1.85mm Female 39-Inch, 2.92NMD-3.5mm Male 26-Inch, 2.92NMD-3.5mm Female 26-Inch, 2.92NMD-3.5mm Male 39-Inch, 2.92NMD-3.5mm Female 39-Inch, 2.4NMD-3.5mm Male 26-Inch, 2.4NMD-3.5mm Female 26-Inch, 2.4NMD-3.5mm Male 39-Inch, 2.4NMD-3.5mm Female 39-Inch, 2.4NMD-2.92mm Male 26-Inch, 2.4NMD-2.92mm Female 26-Inch, 2.4NMD-2.92mm Male 39-Inch, 2.4NMD-2.92mm Female 39-Inch, 3.5mm Male-Type N Male 26-Inch, 3.5mm Male-Type N Female 26-Inch, 3.5mm Male-Type N Male 39-Inch, 3.5mm Male-Type N Female 39-Inch
