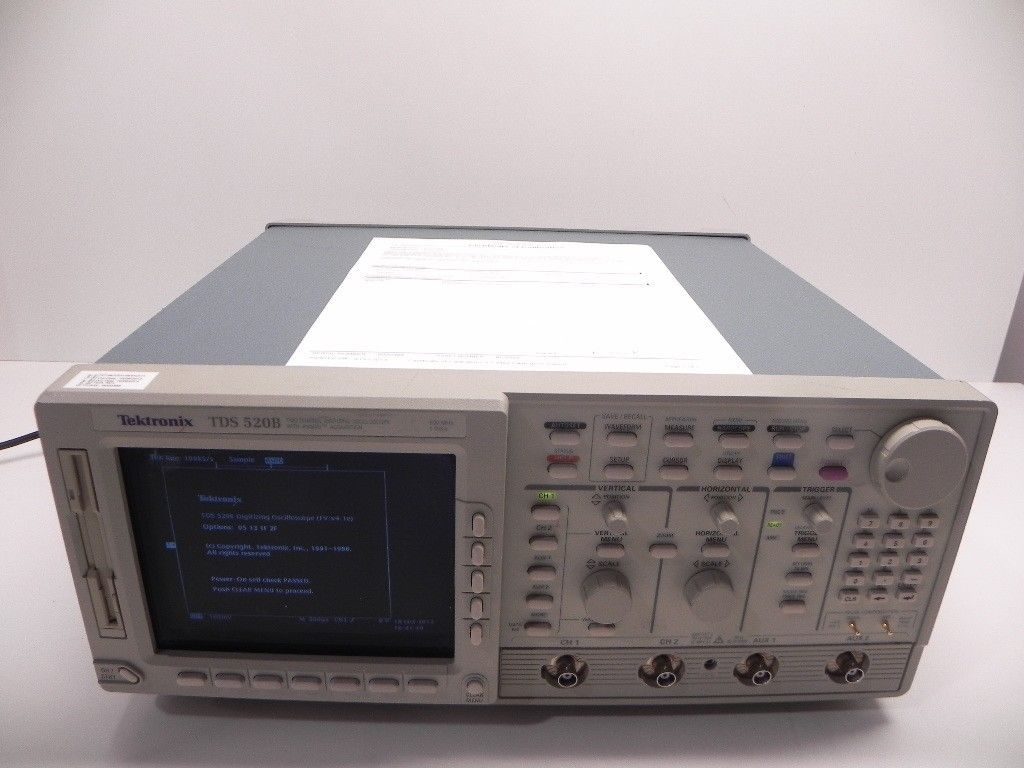

Tektronix TDS520B Digitizing Oscilloscope, 500 Mhz, 2 Ch w/ Options 05/13/1F/2F


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

500 MHz bandwidth
2 channels
Max. Sampling rate (1 ch) – 1 GSa/s
Simultaneous Max.sampling rate/ch – 500 MSa/s
Max.record length – 50000 pt/sec
Vertical sensitivity 1 mV/div to 10 V/div
Rise time 700 ps
Number of bits 8

SKU: TEKTDS520B-05-13-1F-2F Categories: , Tag:
Brand:

Description

Accessories

Part Number Description
Qty
  Power Cord
1
070-9701-03 User Manual
1
070-9220-00 Reference Card
1
070-8036-02 Service Manual
1
070-9702-00 Programmer Manual
1
070-9705-02 Performance Verification & Specifications
1
  10x Passive Probes
4

Options

Option Description
1R Rackmount (016-1166-00)
02 Front Cover and Pouch (part of XL)
05

Video Trigger (Standard on TDS4xxA)

13 RS-232/Centronics Interface (part of XL)
2F Advanced DSP Math (part of XL)
1M 120,000 Point Record Length (part of XL)
XL Package of options: 02, 13, 1M, 2F

Additional information

Weight 42 lbs
Dimensions 12 × 22 × 26 in
Channels

2

Condition

Model Number

TDS520B

Frequency Low Khz

500000

Low Frequency

500000

Manufacturer

Tektronix

Sample Rate

1 GS/s

Type
