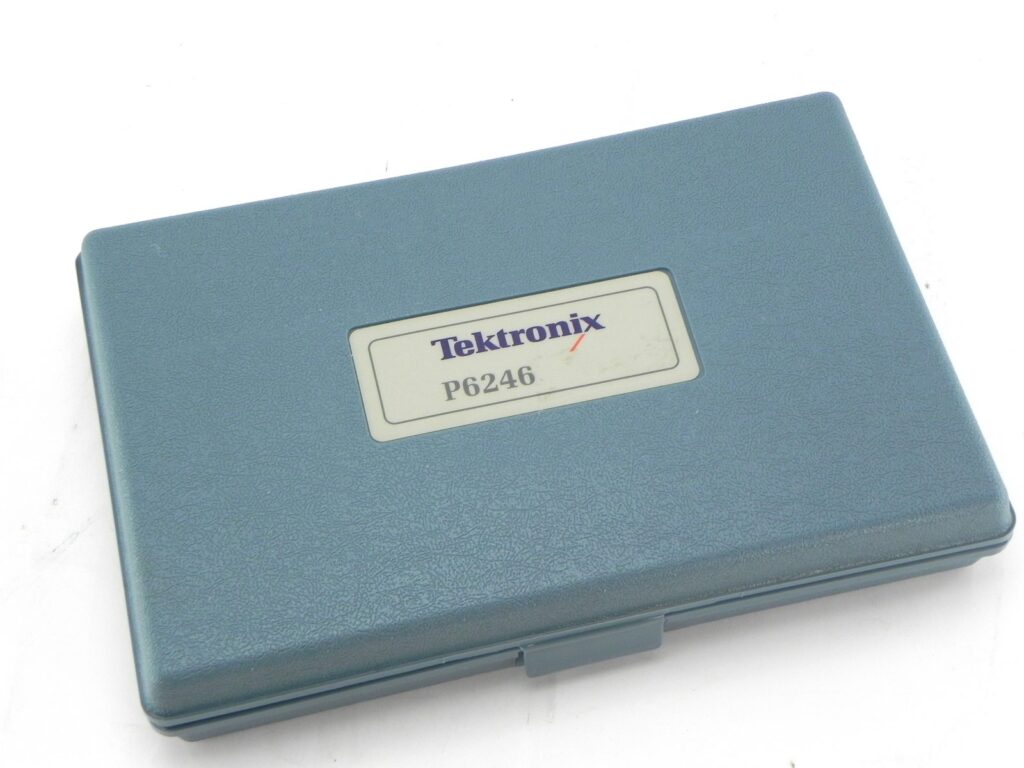

Tektronix P6246 Differential Probe


General Inquiries/Quote Request
Rental/Lease Information Request

The Tektronix P6246 enable users to make time domain or frequency domain measurements on high bandwidth signals commonly found in disk drive, digital IC design (RAMBUS) and communication applications (Gigabit Ethernet, IEEE-1394 Firewire and Fibre Channel). The small probe head geometry and assorted probe tip accessories allow these probes to easily accommodate manual probing of surface mount devices while maintaining high CMRR. The P6246 are ideal for design verification of disk drive read channel electronics and timing analysis for troubleshooting ground bounce problems associated with high speed logic. They can also be used for pulse shape or cross talk compliance testing of high speed communication signals.

SKU: TEKP6246 Categories: , , Tag:
Brand:

Description

Low Input Capacitance: <1ย pF Differential

Probe Input Connector: Two Standard 0.025ย in./0.63ย mm (0.1ย in. center) Square Pin Receptacle (Female)

Electrostatic Discharge Tolerant (IECย 801-2)

Connects to TEKPROBET BNC Interface on TDS Series Oscilloscopes or Other Instruments Using 1103 TEKPROBEยฎ Power Supply

For Use with Oscilloscopes, Spectrum or Network Analyzers

>60ย dB (1000:1) Common Mode Rejection Ratio (CMRR)

Small Probe Head Allows Easy Probing of SMDs

Additional information

Weight 5 lbs
Dimensions 12 × 8 × 4 in
