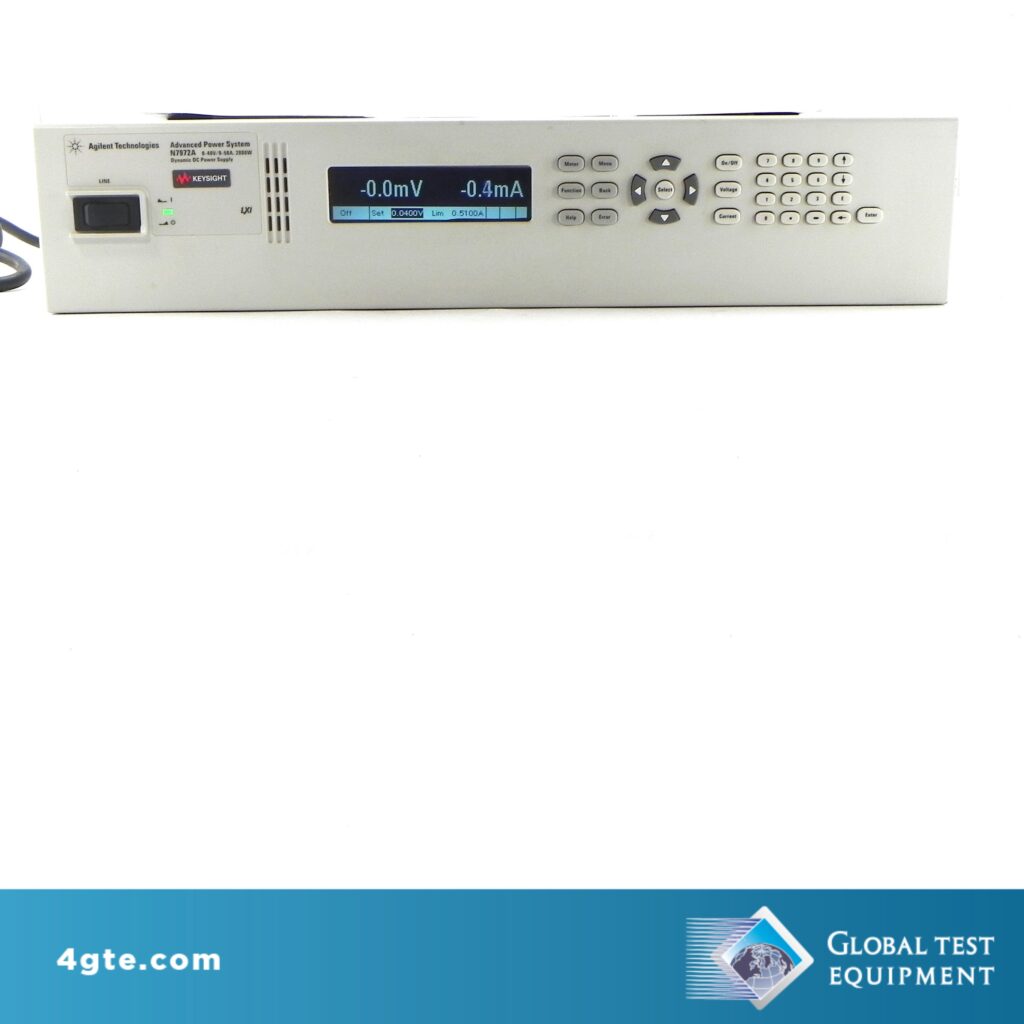

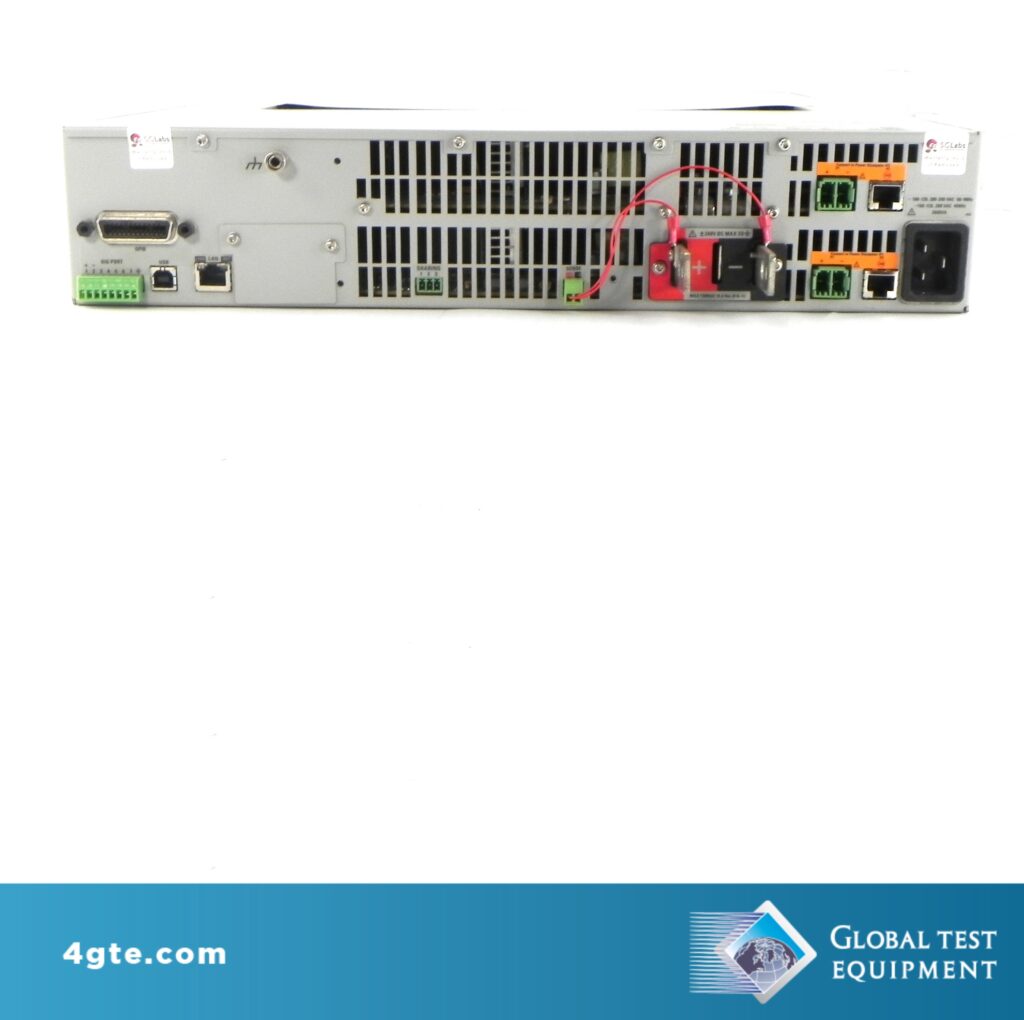

Keysight N7972A Advanced Power System – Dynamic DC Power Supply, 40 V, 50 A, 2000 W


General Inquiries/Quote Request

Already Own One?
Get Repairs Calibration ...and more!

$5,200.00

1 in stock

Keysight N7972A Advanced Power System – Dynamic DC Power Supply, 40 V, 50 A, 2000 W

SKU: KEYN7972A Categories: ,
Brand:

Description

Keysight N7972A Advanced Power System – Dynamic DC Power Supply, 40 V, 50 A, 2000 W

Accelerate test throughput with industry-leading specifications

  • Test speeds 100x faster than standard system power supplies
  • Command processing speed < 2ms
  • Fast up/down programming speeds up to 500 µs
  • Adjustable measurement rate to balance speed and accuracy

Accurately characterize your DUT’s power profile with advanced measurement capability

  • Dual voltage and current measurement capability with DMM-like accuracy
  • Power, peak power, watt hour, and amp hour measurements

Full two-quadrant operation for power storage test applications

  • Provides continuous smooth operation between +current and – current transitions
  • Provides + and – programmable current limits, programmable + and – current waveforms, and automatic down programming
  • Full two-quadrant operation requires N7909A power dissipater units, standalone power supply offers 10% rated current two-quadrant operation

Track power events with a black-box recorder

  • Optional accessory N7908A black-box recorder
  • Works in the background tracking power events whenever the APS supply is on
  • Records measurement data, trigger events, status bits, and more

Additional information

Weight 36 lbs
Dimensions 4 × 17 × 25 in
