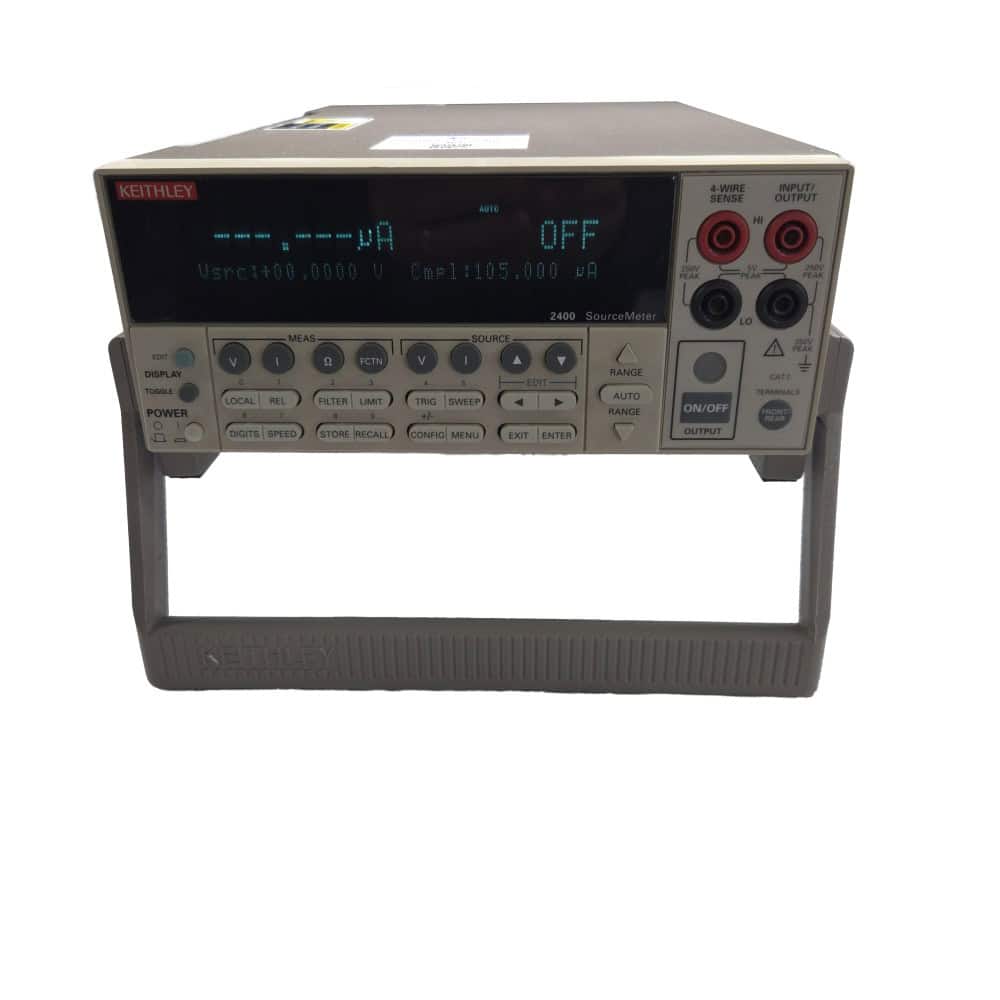

The Keithley Model 2400 SourceMeter® is a 20W instrument that allows sourcing and measuring voltage from ±5µV (sourcing) and ±1µV (measuring) to ±200V DC and current from ±10pA to ±1A. It’s well-suited for testing a wide range of devices, including diodes, resistors, resistor networks, active circuit protection devices, and portable battery-powered devices and components. It’s also useful for systems power sourcing and I DDQ testing applications.
4-quadrant operation
0.012% basic accuracy with 5 1/2-digit resolution
6-wire O measurement with programmable I source and V clamp
1700 readings/second at 4 1/2 digits via GPIB
Built-in comparator for fast pass/fail testing
Digital I/O for fast binning and connection to component handlers
GPIB, RS-232, and Trigger Link interfaces
| Weight | 24 lbs |
|---|
