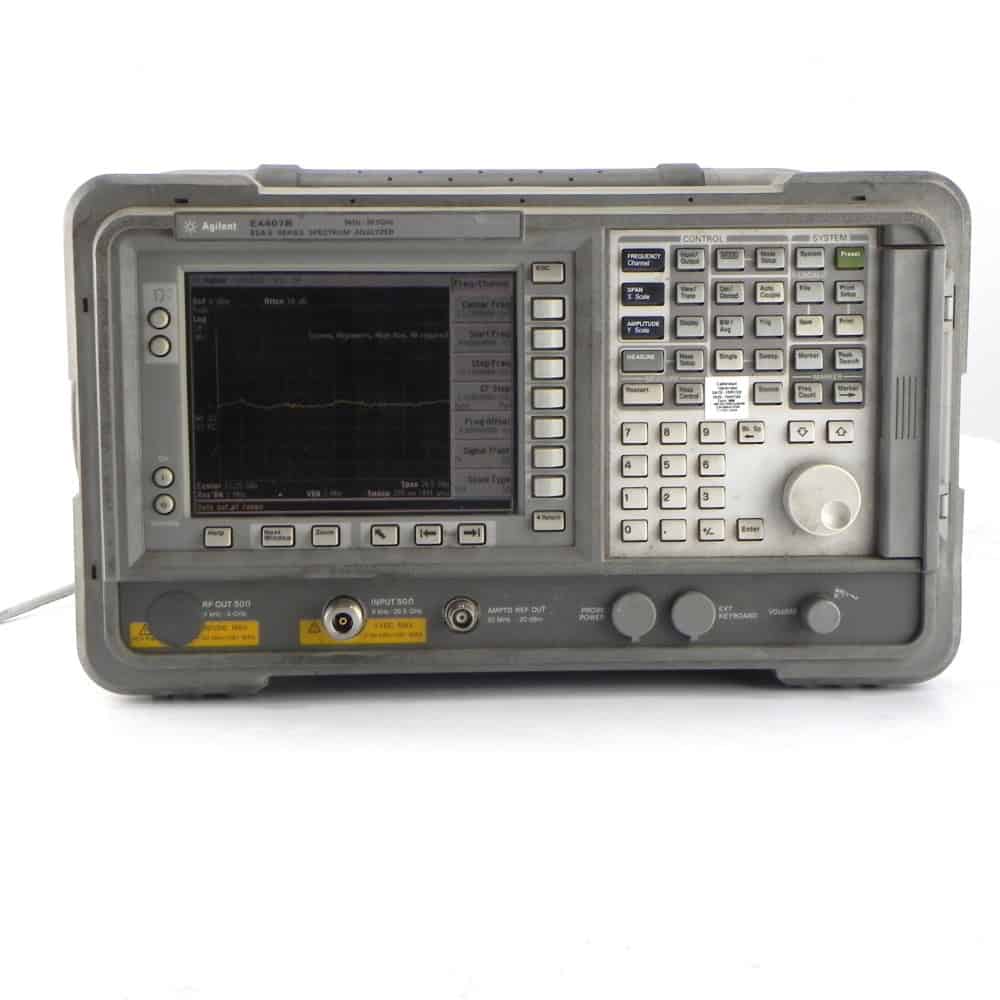

Keysight E4407B ESA-E Series Spectrum Analyzer, 100 Hz to 26.5 GHz


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent ESA-E Series is our mid-performance spectrum analyzer solution for the future. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required.
The products’ selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.

SKU: KEYE4407B Categories: , Tag:
Brand:

Description

Bluetooth, GSM and cdmaOne standards compliant measurement personalities
Fault location, phase noise and CATV service measurement personalities
Rugged and portable for lab grade performance in the field
One-millisecond RF sweep time, 45 measurements per second
± 1 dB overall amplitude accuracy
Optional 1 Hz digital-resolution bandwidth filter and preamplifier
-166 dBm sensitivity, with internal preamp, +12.5 dBm TOI
Variable sweep (trace points) from 2 to 8192
Segmented sweep for up to 32 discontinuous spans in one sweep
Free IntuiLink PC software for screen and data transfer
Add a built-in microwave preamplifier to 26.5 GHz, Option H26, to make
low-level signal detection and surveillance easier

Additional information

Weight 42 lbs
