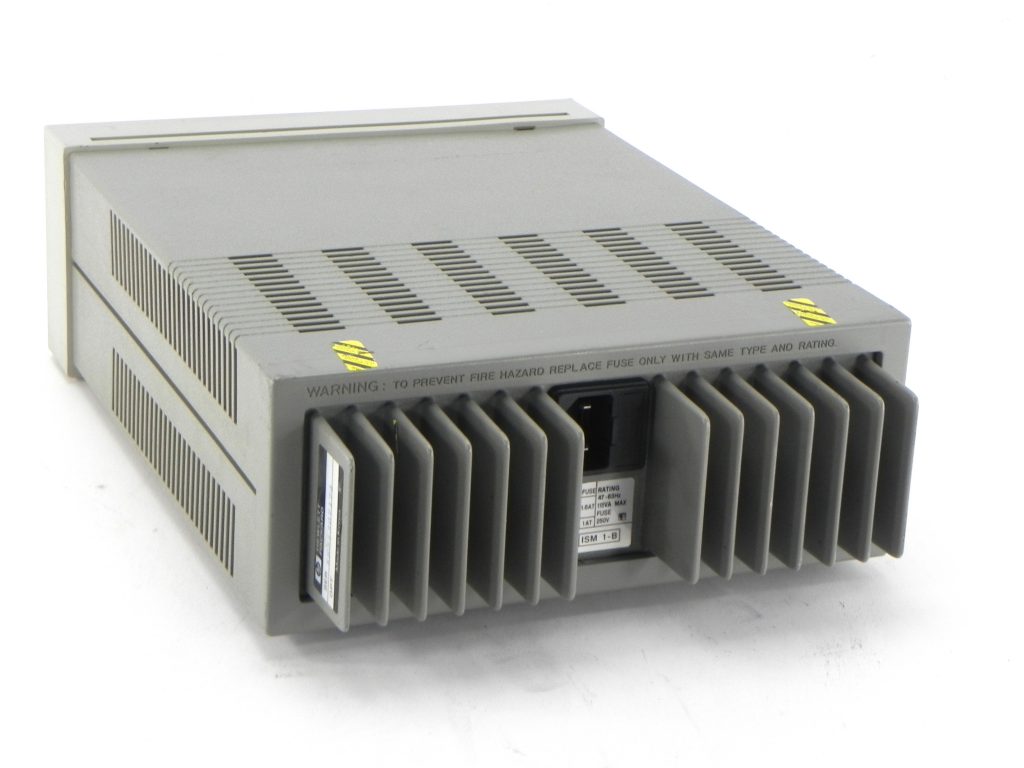

Keysight E3630A 35W Triple Output Power Supply, 6V, 2.5A & 20V, 0.5A, 35W DC


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent E3630A 35-watt triple-output power supply provides three DC outputs: 0 to 6 V with a maximum current of 1 to 2.5A and 0 to 20 V and 0 to -20 V with a maximum current of 0.5A. An auto-tracking feature lets you use one voltage control to adjust the +20 V and -20 V outputs simultaneously. The outputs track each other to within 1 percent, making it easy to adjust the power supply circuits requiring balanced voltages.

Affordable, clean, reliable, power for your bench top.

SKU: KEYE3630A Categories: , Tag:
Brand:

Description

  • 35 W triple output
  • Constant voltage (CV) and Current limit (CL) modes (±20V)
  • Constant voltage (CV) and Current foldback (CF) modes (+6V)
  • Low noise and excellent regulation
  • Digital voltage and current meters
  • Output tracking

Accessories

Part Number Description
Qty
Power Cord
1
5959-5329 User Guide
1

Options

Option Description
0E3 230V Single-Phase 3-wire, 230 VAC +/- 23V
0E9 100V Single-Phase 3-wire, 100 VAC +/- 10V
0EM 115V Single-Phase 3-wire, 115 VAC +/- 11V
0L2 Additional User Guide
Rackmount kit (5063-9767)

Additional information

Weight 10 lbs
Dimensions 4 × 9 × 15 in
Condition

Model Number

E3630A
Input Power

100,115,230
Manufacturer

HP/Agilent
Type

Voltage

6,20
Watts

35
