Description
Includes:
| Solder-in differential probe head kit consists of the following | E2677A | ||
| D1 | Solder-in differential probe head | 4 | 01131-62103 |
| D2 | Resistor for solder-in differential probe head full bandwidth, 91 ohm) | 80 | 01131-81510 |
| D3 | Resistor for solder-in differential probe head medium bandwidth, 150 ohm) | 40 | 01131-81506 |
| 91 ohm resistor template | 1 | 01131-94311 | |
| 150 ohm resistor template | 1 | 01131-94308 | |
| Socketed differential probe head kit consists of the following | E2678A | ||
| D4 | Socketed differential probe head | 2 | 01131-62105 |
| D5 | Resistor for socketed differential probe head full bandwidth, 82 ohm) | 96 | 01130-81506 |
| D6 | Socket for 25 mil (25/1000 inch) square pins, female on both ends | 8 | 01131-85201 |
| D7 | 25 mil female socket w/20 mil round male pin on other end | 8 | 01131-85202 |
| D8 | Heatshrink socket accessory | 8 | 01130-41101 |
| D9 | 160 ohm Damped wire accessory | 12 | 01130-21302 |
| D13 | Header adapter | 4 | 01130-63201 |
| 82 ohm resistor template | 1 | 01131-94309 | |
| Differential browser kit consists of the following | E2675A | ||
| D10 | Differential browser | 1 | 01131-60002 |
| D11 | Resistive tip for differential browser (blue) | 20 | 01131-62102 |
| D12 | Ergonomic handle | 1 | 01131-43201 |
Differential browser probe head and ergonomic handle

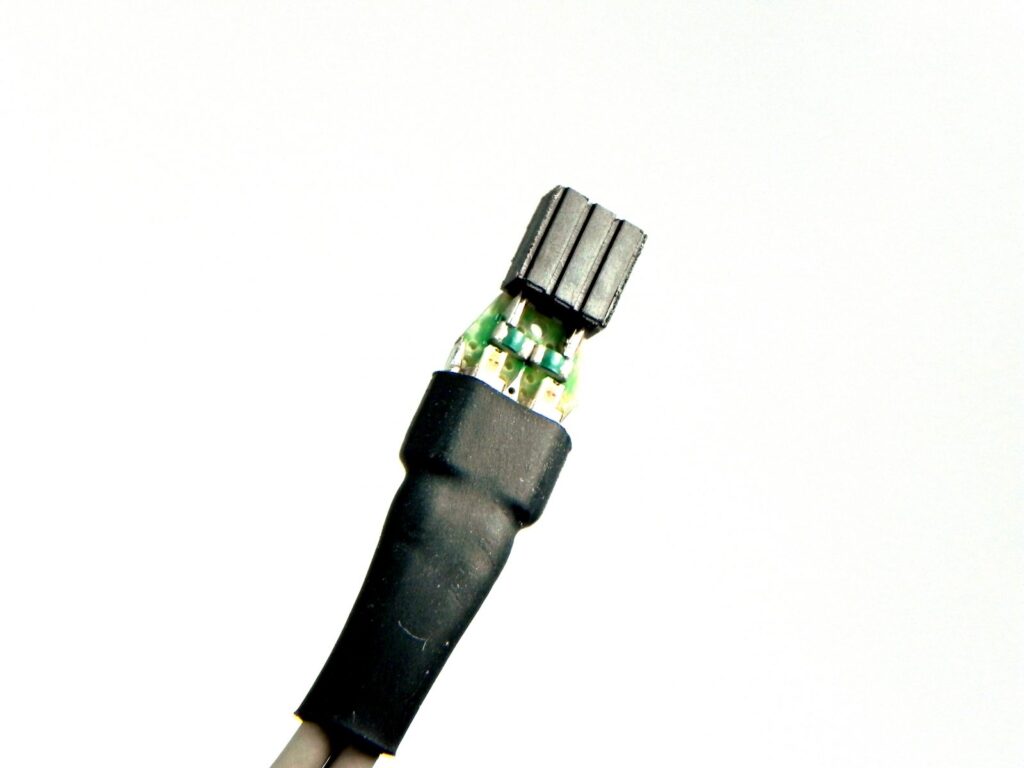

2 Differential socketed probe heads·
4 Differential solder-in probe heads
