Keysight 8546A EMI Receiver, 9 kHz to 6.5 GHz (85462A & 85460A)

Out of stock

Quote Request

Please give us to call at 866-409-0400 to discuss when you can expect this product back in stock.

Already own one?

The Agilent 8546A EMI test receiver makes CISPR-based EMI measurements with unprecedented accuracy, speed, and ease of use. It is fully CISPR 16-1 compliant, and can be used to check conformance to any civilian EMI standard, including CISPR, EN, FCC, VCCI, and VDE. With an upper frequency of 6.5 GHz, the Agilent 8546A can test the newest high-speed ITE equipment. The Agilent 8546A works with our PC-based EMI measurement software (Agilent 85875A or 85876B) to create the most powerful, easiest-to-use automated solution available for commercial radiated and conducted emission testing.

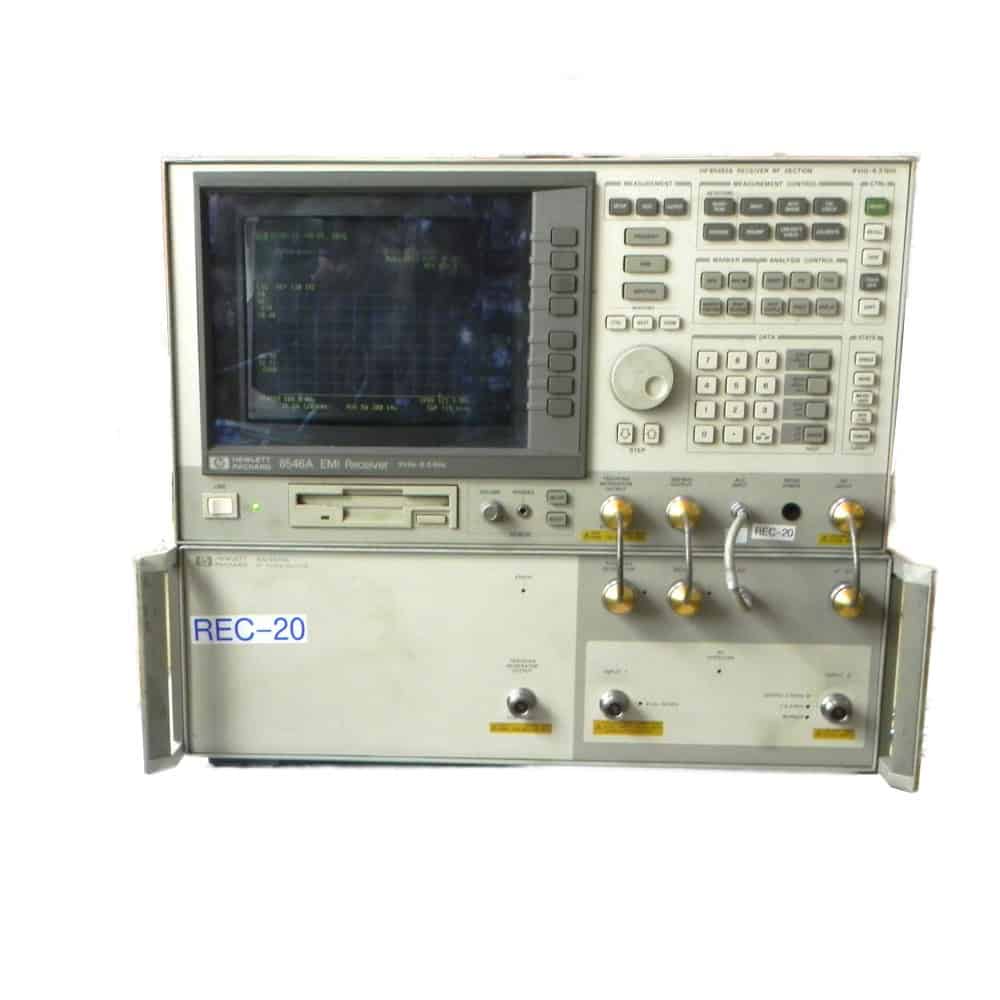

This unit consists of the 85462A Receiver RF Section and 85460A RF Filter Section

Description

Traditional receiver features, including automatic overload detection
and auto-ranging
Three tuning modes: manual, stepped and scanning in log or linear format
Onscreen limit lines
Automatic antenna and cable correction for direct comparison of measurement
data to limits
Built-in measurement routines which speeds up testing
Hardcopy output without a computer
Simultaneous measurement of peak, quasi-peak, and average amplitude
Tuning Range: Band 1: 9 kHz to 50 MHz, Band 2: 20 MHz to 2.9 GHz, Band
3: 1 GHz to 6.5 GHz
Bypass: 9 kHz to 2.9 GHz (to 6.5 GHz)
Agilent 85422E/85462A: 9 kHz to 2.9 GHz (to 6.5 GHz)

Additional information

Weight 30 lbs
