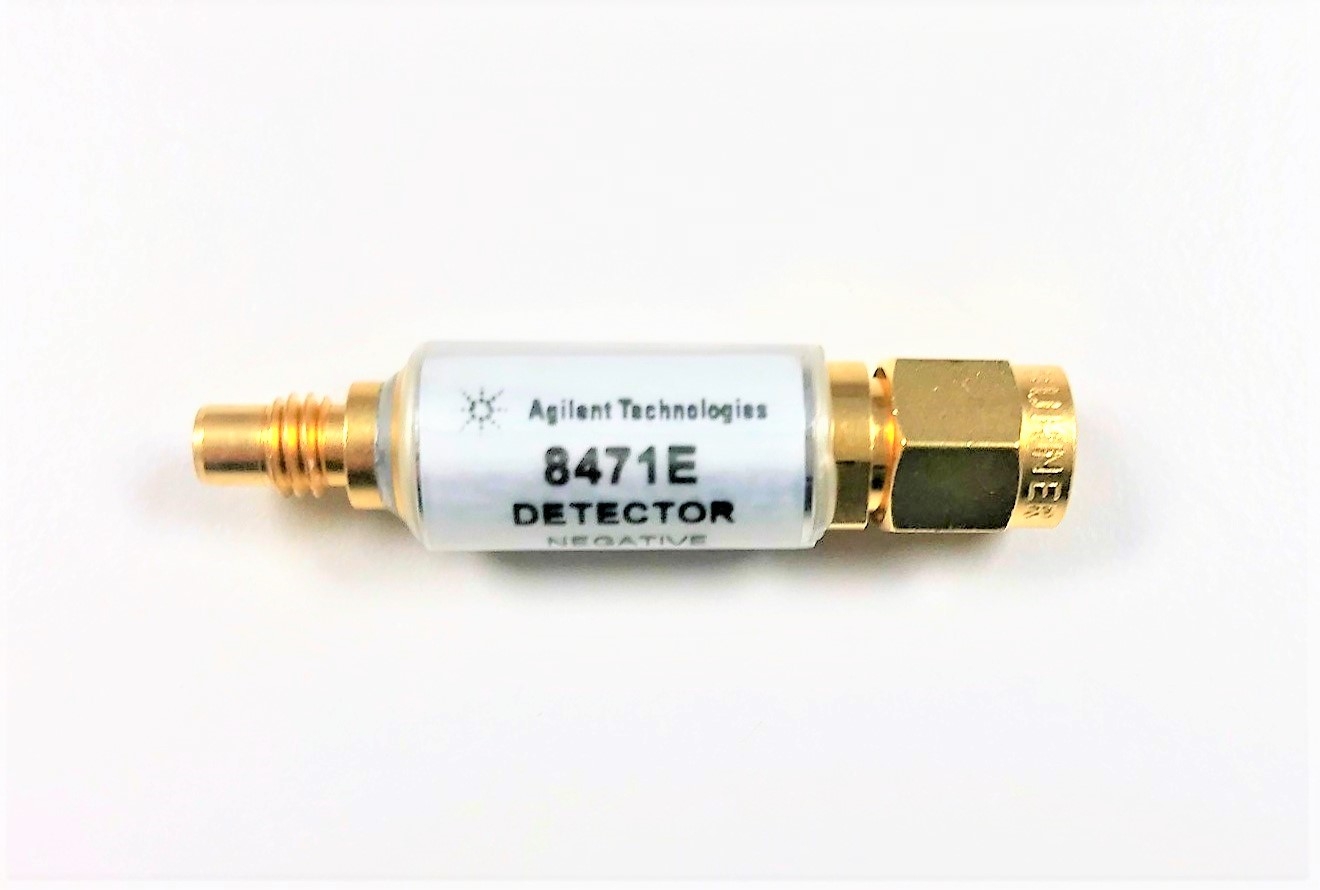

The Agilent 8471E is a low-cost, planar-doped barrier detector offering excellent performance from 10 MHz to 12 GHz. It has an SMA male input connector and an SMC male output connector.

SKU: KEY8471E Categories: , Tag:
Brand:

Description

Keysight 8471E Planar-Doped Barrier Diode Detector, 10 MHz to 12 GHz

  • Frequency Range: 10 MHz to 12 GHz
  • Frequency Response: ± 0.23 dB to 4 GHz, ± 0.6 dB to 8 GHz, ± 0.85 dB to 12 GHz
  • Maximum SWR: 1.2 to 4 GHz, 1.7 to 8 GHz, 2.4 to 12 GHz
  • Low Level Sensitivity: > 0.5 mV/µW
  • Maximum Operating Input Power: 200 mW
  • Typical Short-term Maximum Input Power (< 1 minute): 0.7 W
  • Output Polarity: Negative
  • Input Connector: SMA male
  • Output Connector: SMC male

Accessories

Options

Additional information

Weight 0.06 lbs
Dimensions 8 × 4 × 4 in
Condition

Model Number

8471E

Manufacturer

Agilent
