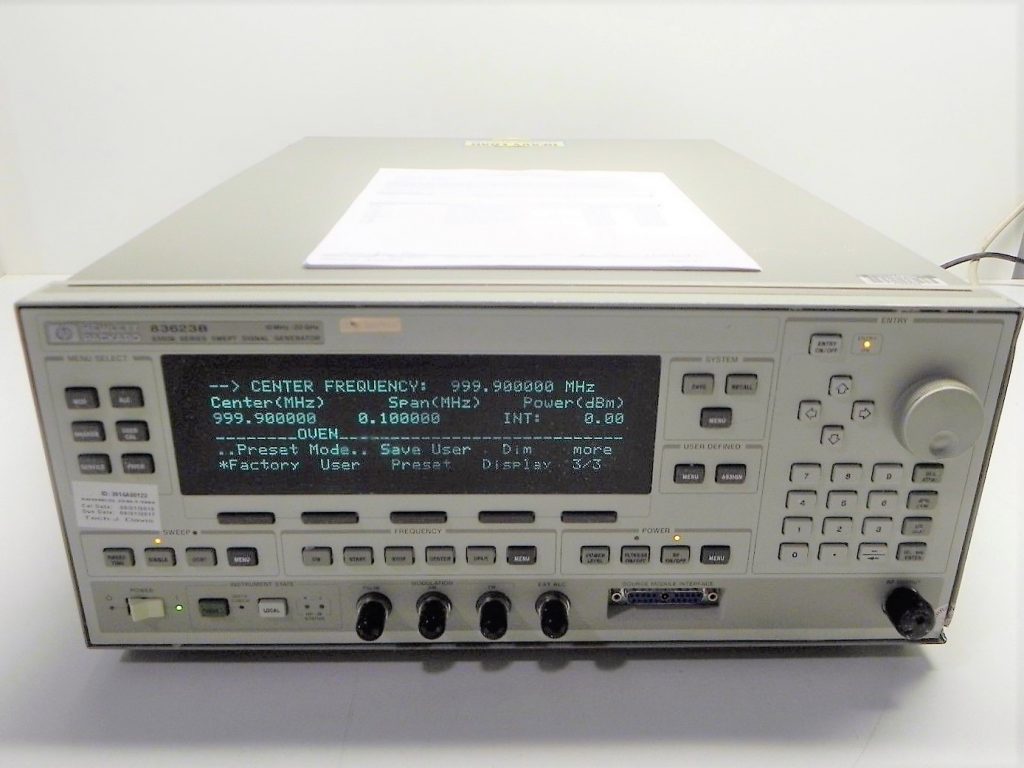

Keysight 83623B High Power Swept-Signal Generator, 0.01 – 20 GHz w/001/006/008


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The Agilent 83623B high power synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent 83623B to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 25 dB below the carrier from 2.0 to 20 GHz.

SKU: KEY83623B/001/006/008 Categories: , Tag:
Brand:

Description

+17 dBm to -110 dBm (Option 001) calibrated output power

  • -50 dBc harmonics <20 GHz typical
  • SSB phase noise <-80 dBc at 10 GHz and 10 kHz offset
  • Complete analog sweeper
  • 1 Hz frequency resolution (Option 008)

    Accessories

    Part Number Description
    Qty
    08360-90127 User’s Guide
    1
    08360-90070 User’s Handbook
    1
    5062-3990 Rack Handles, Mounted
    2
    1250-1745 Type-N (F) to 3.5mm (F) Adapter
    1
    5061-5311 3.5mm (F) to 3.5mm (F) Adapter
    1
      Power Cord
    1
      Software Package
    1

    Options

    Option Description
    001 Add Step Attenuator
    002 Add Internal Modulation Generator
    004 RF Output Connector Moved to Rear Panel
    006 Add Fast Pulse Modulation
    008 1-Hz Frequency Resolution
    700 MATE Compatibility
    806 Rack Slide Kit
    908 Rack Mount Flange Kit, Use Without Handles
    910 Extra Documentation
    911 Delete Documentation
    913 Rack Mount Flange Kit, Use With Handles
    C01 Type-N RF Output Connector

    • Additional information

    Weight 24 lbs
    Dimensions 31 × 24 × 18 in
    Condition

    Model Number

    83623B
    Frequency Low Khz

    20000000
    Low Frequency

    20000000
    Manual

    HP/Agilent 83623B Data Sheet https://4gte.com/index.php/filemanager/datasheet/download/id/118/
    Manufacturer

    HP/Agilent
    Max Output

    +17 dBm
    Modulation Type

    AM, FM, Pulse, Scan
