Home » Products » Keysight 66103A dc Power Module, 35V, 4.5A
66103A (1)

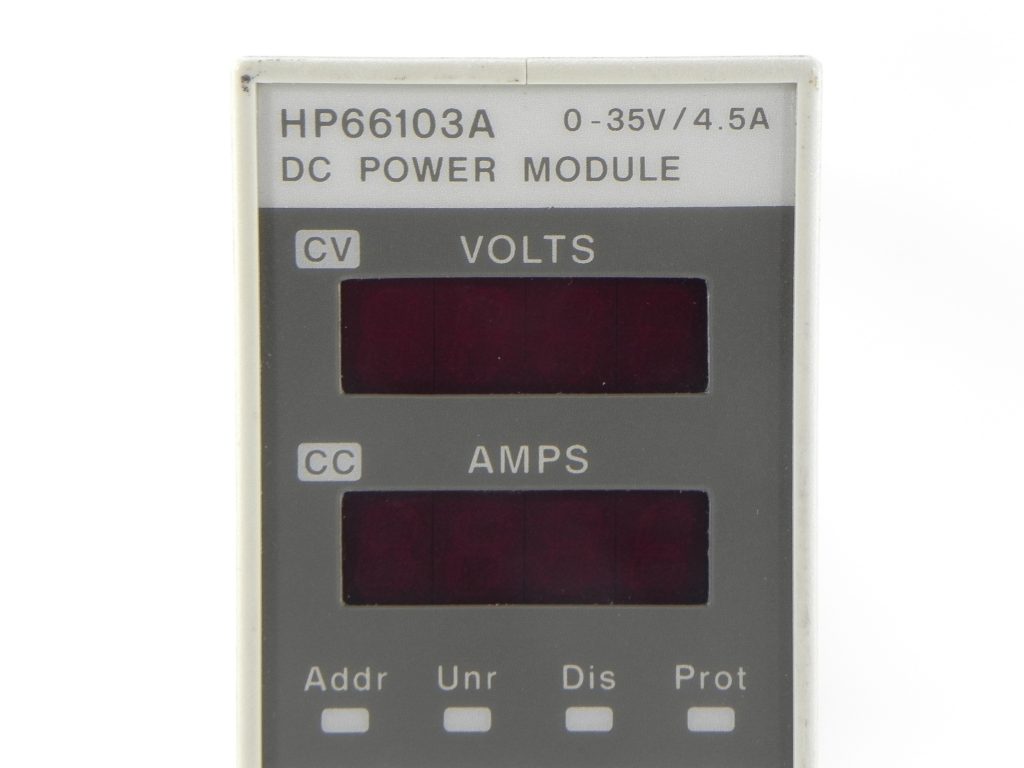

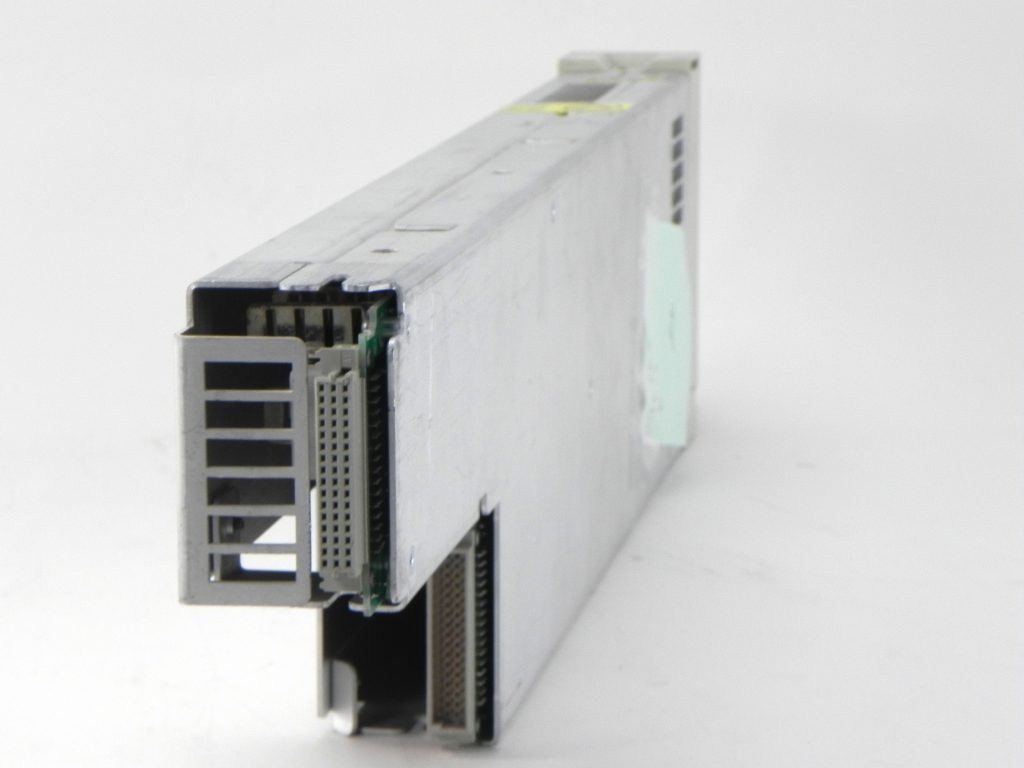

Keysight 66103A dc Power Module, 35V, 4.5A

Out of stock

Quote Request

Please give us to call at 866-409-0400 to discuss when you can expect this product back in stock.

Already own one?

The Agilent 66103A module and power system simplifies test-system assembly, cabling programming, debugging, and operation. It is ideal for ATE and production test environments, where it can supply bias power and stimulus to subassemblies and final products. The Agilent modular power system saves rack space. The 66000A 7-in high (4-EIA units) mainframe can accommodate up to eight dc power modules.

Description

  • Output sequencing
  • Low ripple and noise
  • High-accuracy read-back of voltage and current over GPIB
  • Standard Commands for Programmable Instruments (SCPI)
  • VXI plug&play drivers
  • Optional keyboard and display unit
  • Built-in self-test

Accessories

Part Number Description
Qty
5060-3386 Output Connector (16A)
1
5959-3362 Programming Guide
1
5959-3386 User’s Guide
1
5959-3364 Service Guide
1

Options

Option Description
0B0 Delete Manual Set
0B3 Service Manual
0L1 Standard Documentation Set
0L2 Additional Standard Documentation Set
760 Add isolation/polarity relays
AYM No isolation/polarity relays
J01 Output modified – 37V, 4A, 148W
J02 Output modified – 40V, 3.6A, 144W
J09 Output modified – 28.5V, 5.5A, 140W
J10 Two fault indicators in module
J12 Output modified – 24V, 6A, 144W
J15 Delete output connectors
J17 Provides external Imonitor
