HP/Agilent 6263B Power Supply 0 - 20V/ 10A

Keysight 6263B Power Supply 0 – 20V/ 10A

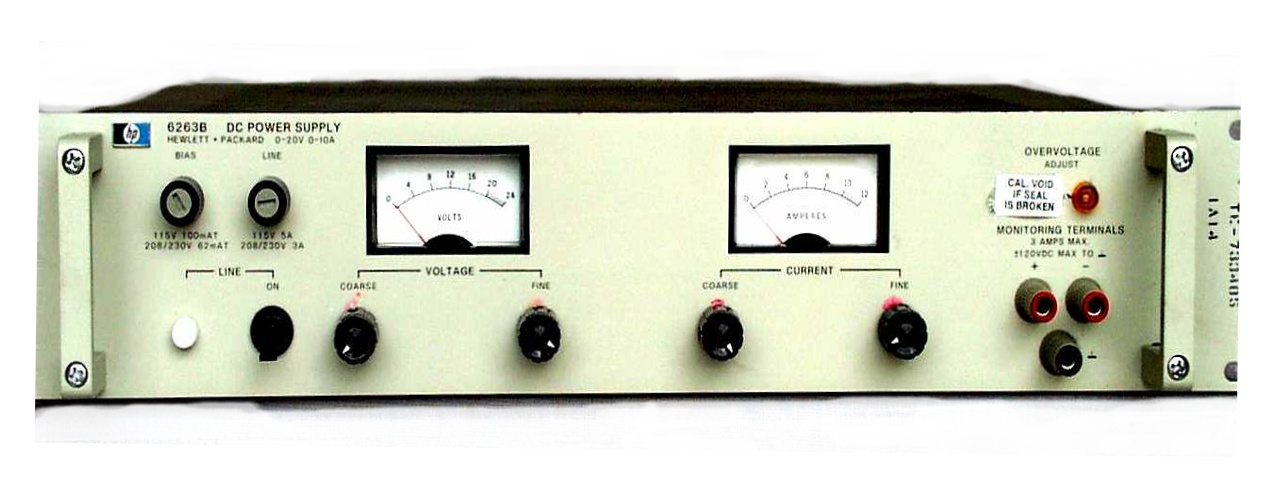

The HP/Agilent 6263B is a high-performance constant voltage/constant current power supply. This unit employs a transistor series-regulator/triac-preregulator circuit to achieve high efficiency, excellent regulation,low ripple and noise, and moderate programming speeds in a compact full-rack width package.

Already own one?

Description

  • 0 to 20 volts, 0 to 10 amperes.
  • Load Effect: voltage – 0.01% + 200µV, current – 0.02% + 500µA
  • Source Effect: voltage – 0.01% + 200µV, current – 0.02% + 500µA
  • Stability: Voltage 0.03% + 500µV, current – 0.03% + 6mA

Accessories

Part Number Description
Qty
5950-1765 Operating Manual
1
Power Cord
1

Options

Option Description
005 50 Hz Operation
009 V/C 10 turn pots
010 Chassis Slides
015 Decdial V/C Cont
022 Voltage and Current Programming
027 208 Vac +/-10%, 57-63 Hz input line
028 230V operation
040 Multiprogrammer Interface
910 Extra Manual Set

Additional information

Weight 16 lbs
Dimensions 12 × 12 × 12 in
Condition

Model Number

6263B
Input Power

115,208,230
Manual

HP/Agilent 6263B Operating and Service Manual 5950-1765 https://4gte.com/index.php/filemanager/datasheet/download/id/321/
Manufacturer

HP/Agilent
Type

Voltage

20
Watts

200
