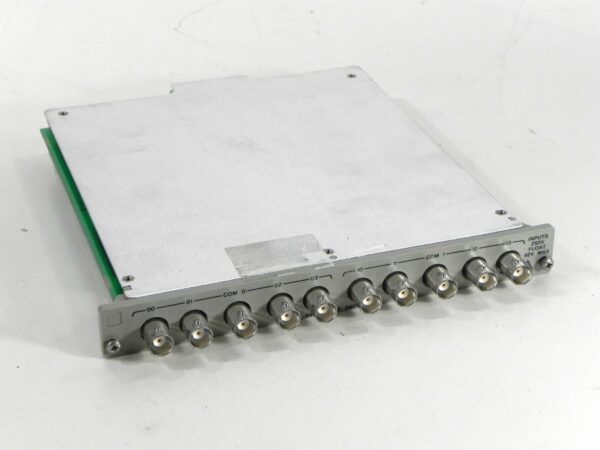

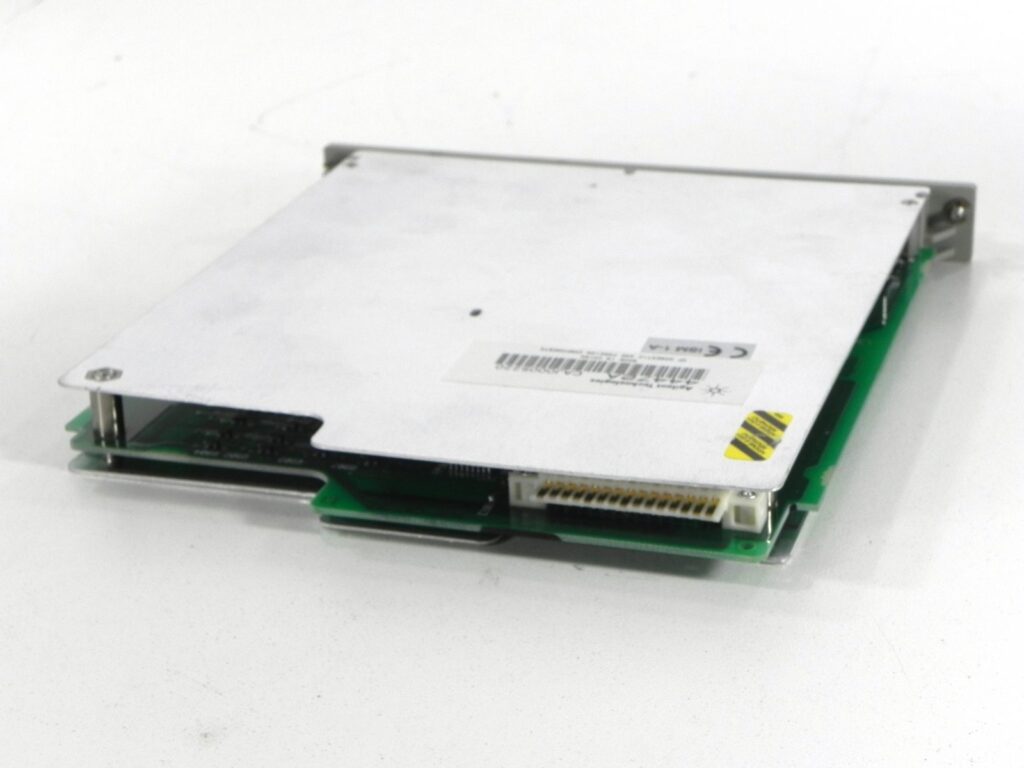

HP/Agilent 44472A Dual 1×4 VHF Multiplexer(300MHz, 50 Ohm)


General Inquiries/Quote Request
Rental/Lease Information Request

$49.00

1 in stock

The Agilent 44472A VHF module offers broadband switching capability for high frequency and pulse signals. Two independent 50 Ohm character impedance bi-directional 1×4 switches are provided for signals from DC to 300 MHz. Very low crosstalk makes the VHF module ideal for VHF signal measurements using spectrum, network, or distortion analyzers. You can also use the excellent signal integrity of the VHF module for multiplexing inputs to your GPIB oscilloscope or waveform analyzer. Each group of four channels is isolated from the other and from the chassis to prevent ground loops. BNC connectors provide ease of connection to the module.

SKU: KEY44472Ax Categories: , Tag: Brands: ,

Description

DC to 300MHz
BNC connectors for ease of wiring

Additional information

Weight 2 lbs
Dimensions 9 × 8 × 1 in
