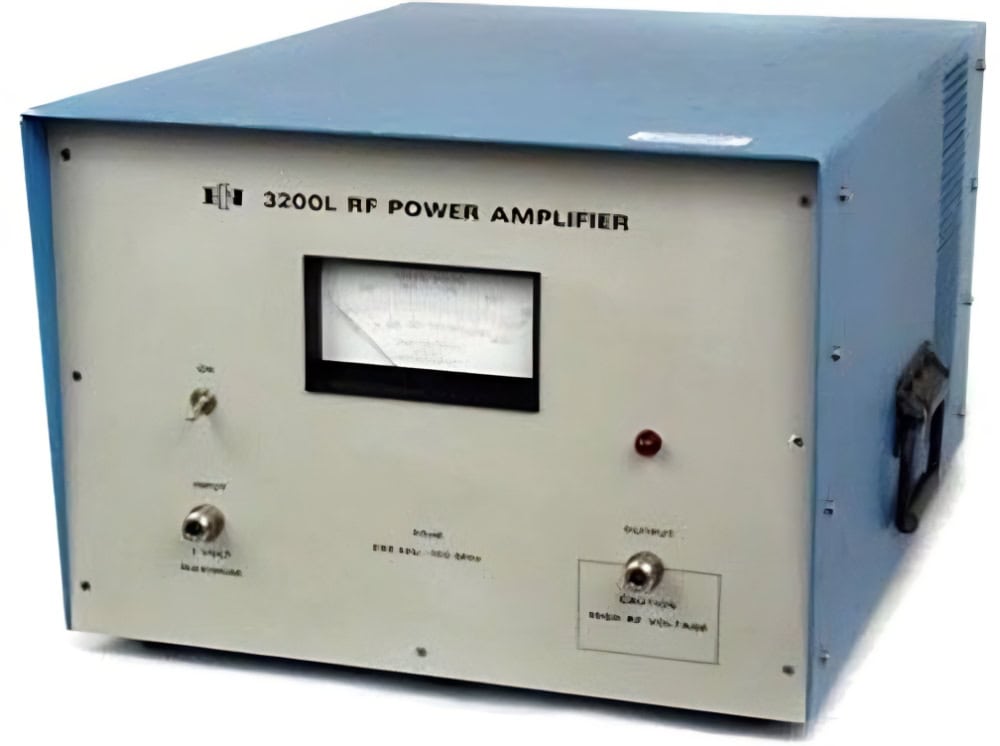

E&I 3200L RF Amplifier, 250 Khz to 120 MHz, 200 Watts


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The 3200L Amplifier is a rugged source of RF power, useful for RFI/EMI, HF and VHF transmitters, plasma equipment, nuclear accelerators and general laboratory applications. The 3200L represents E&I’s commitment to providing RF power amplifiers of the highest quality, durability and ruggedness. The 3200L produces 200 Watts of class A linear power output over the entire frequency range from 250 KHz to 120 MHz. It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 53 dB with a typical gain flatness of +/- 1.5 dB

SKU: ENI3200L Categories: , Tag:
Brand:

Description

Class A
Frequency Range: 250 kHz to 120 MHz
Rated Power Output: 200 Watts (P1dB)
Saturated Power Output: 250 kHz to 150 MHz > 225 W, 1 MHz to 100 MHz > 250 W.
Gain: 53 dB Nominal
Gain Flatness: +/- 1.5 dB
AC Input: 104-240 Volts
Weight: 50 lbs (22.7 Kg)
Size: 8.75 H x 16.5 W x 18.1 D

Additional information

Weight 39 lbs
