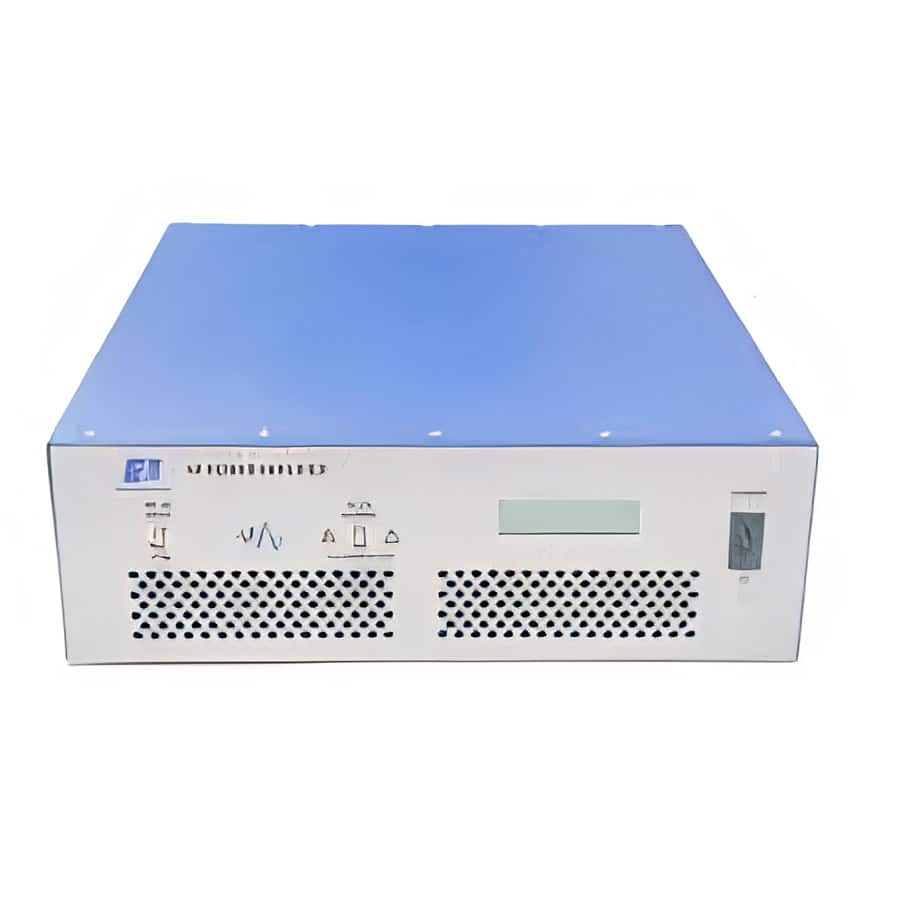

E&I 2100L RF Amplifier, 10 kHz to 12 MHz, 100 Watts

General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

0 in stock

The E+I 2100L RF Amplifier is a rugged source of RF power, useful for ultrasonics, laser modulation, RFI/EMI, plasma equipment and general laboratory applications. The 2100L represents E&I’s commitment to providing RF power amplifiers of the highest quality, durability and ruggedness. The 2100L produces 100 Watts of class A linear power output over the entire frequency range from 10 KHz to 12 MHz. It has very low harmonic distortion along with low IMD products. Operation over the band is achieved without the need for any band switching or indeed any adjustments. The power gain is rated at 50 dB with a typical gain flatness of +/- 1.5 dB.

SKU: ENI2100L Categories: , Tag:


Class A
Frequency Range: 10 kHz to 12 MHz
Rated Power Output: 100 Watts (P1dB)
Saturated Power Output: 10 kHz to 12 MHz > 125 W, 30 kHz to 10 MHz > 150 W.
Gain: 50 dB Nominal
Gain Flatness: +/- 1.5 dB
AC Input: 104-240 Volts
Weight: 35 lbs (16 Kg)
Size: 5.2 H x 16.5 W x 18.1 D

Additional information

Weight 39 lbs
