Description
- Measures temperature, pressure, flow, current, voltage, and more using isolated 8B amplifiers. At least one 8B module is required.

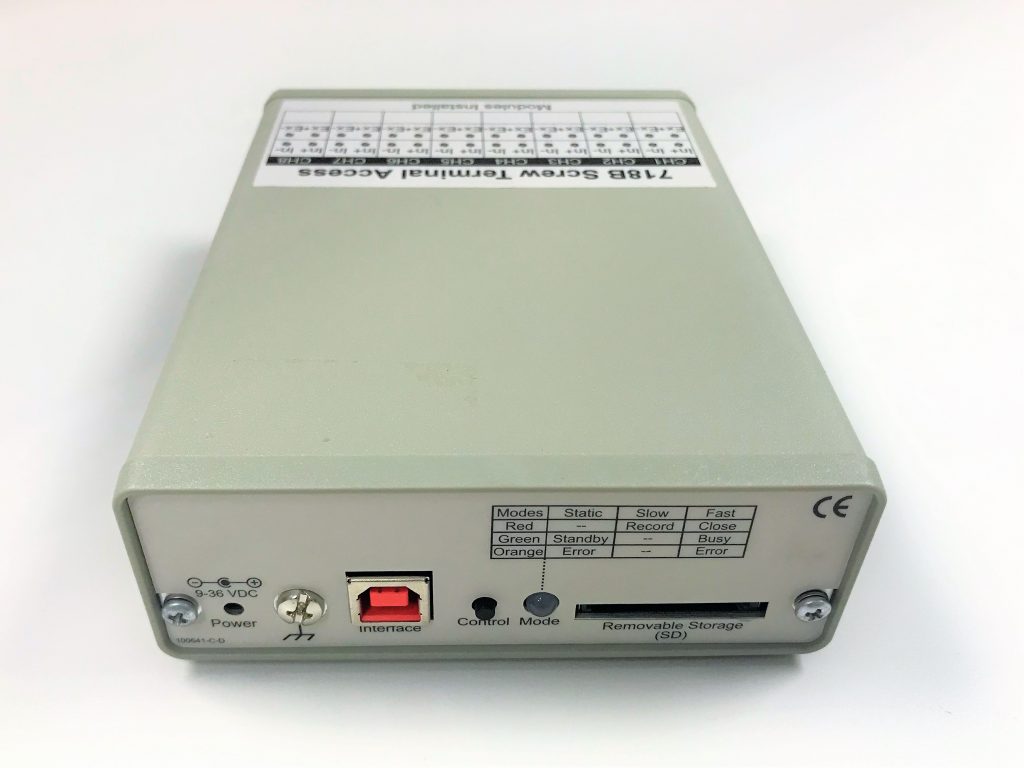

- Low-Cost, Portable, Ethernet Data Acquisition System.

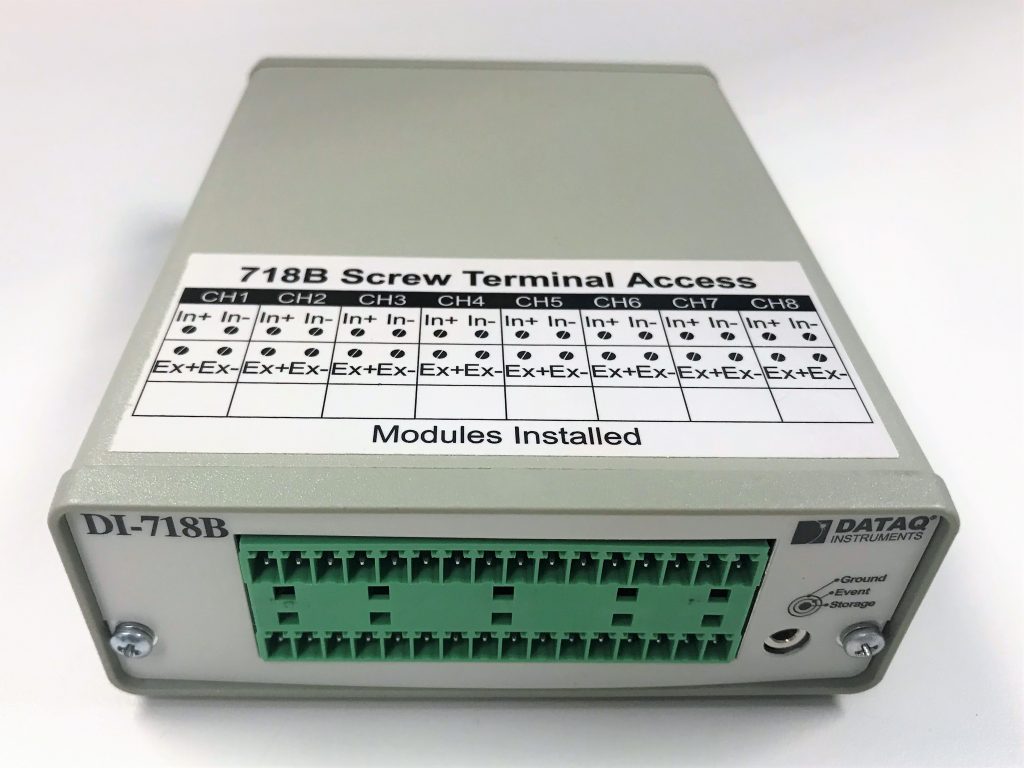

- Eight DI-8B signal-conditioned analog inputs.
- 14-bit analog to digital conversion.
- Includes Software
- Up to 4800 Hz Sample Throughput Rate
- Unlock code required for sample rates over 1,108 Hz only when using WinDaq software
- Wide variety of measurement functions and ranges based on DI-718 selections. Mix and match modules as needed.

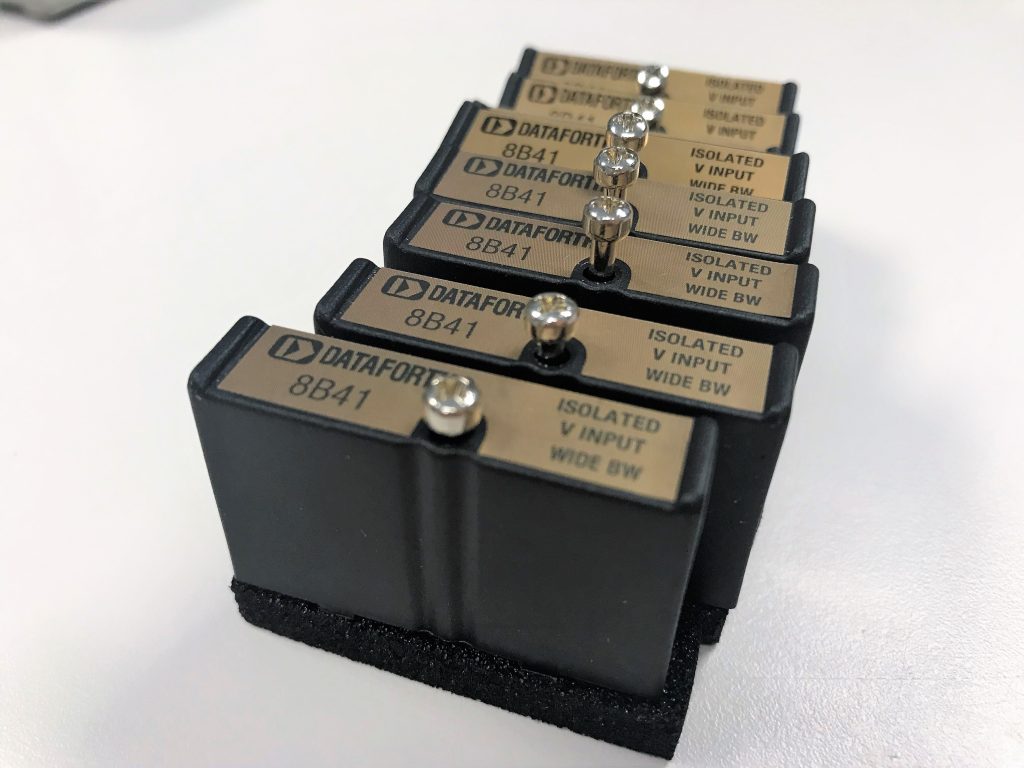

Amplifiers
- -1V to +1V input range
- 1kHz Bandwidth
- High Level Voltage Output
- 1500Vrms Transformer Isolation
- ANSI/IEEE C37.90.1 Transient Protection
- Input Protected to 240VAC Continuous
- 100dB CMR
- ±0.05% Accuracy
- ±0.02% Linearity
- Low Drift with Ambient Temperature
- CSA, FM and CE Certifications Pending
- Mix and Match Modules
