Home » Products » Anritsu 68177B / Wiltron 68177B – Synthesized Sweep Generator – 10 MHz to 50 GHz with options 01/2C/11/16/19

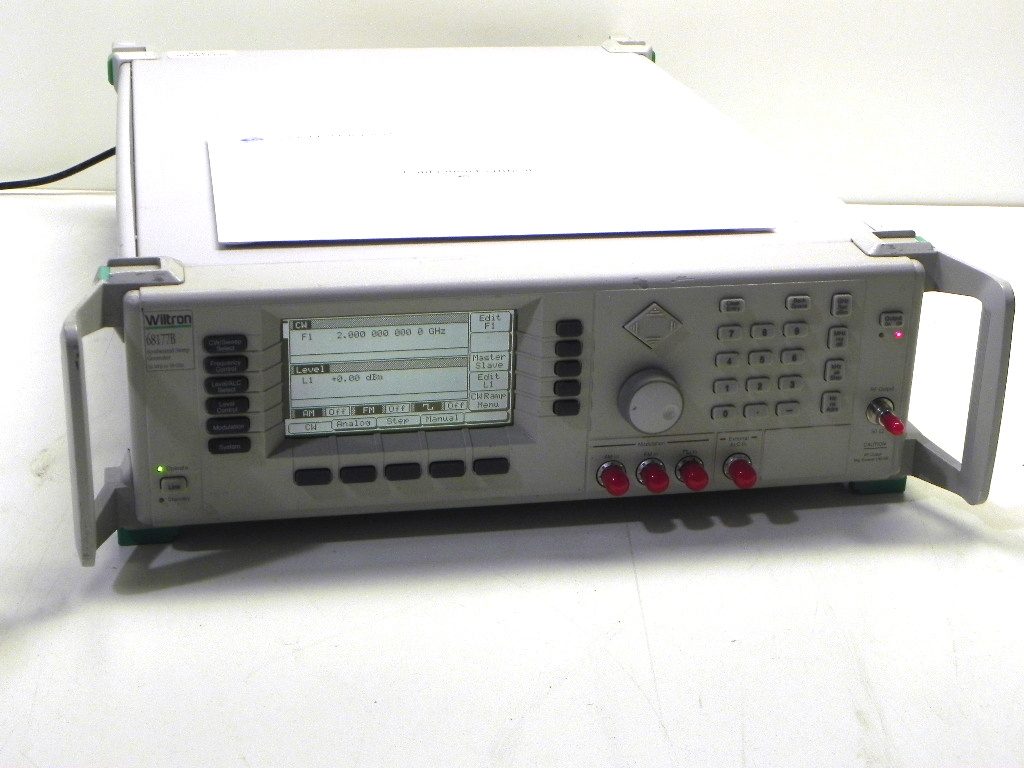

Anritsu 68177B / Wiltron 68177B – Synthesized Sweep Generator – 10 MHz to 50 GHz with options 01/2C/11/16/19

This unit includes OPTIONS: 01/2C/11/16/19 The 68177B Synthesized Sweep Generator features 10 MHz to 50 GHz analog, step and manual sweep capability. 68177B: Minimum Output Power -15 dBm Maximum Output Power 12 dBm Power Resolution 0.01 dB Output Accuracy 2.5 dB Output Level Switching Time 20 ms Output Impedance 50 Ohm Minimum Single-Side-Band Noise -96 dBc/Hz Maximum Single-Side-Band Noise -54 dBc/Hz Harmonics (noise) -40 dBc Non-harmonics (noise) -40 dBc Includes Options: 1 Rack Mount 11 0.1 Hz Frequency Resolution 16 High-Stability Time Base 2C 90 dB Step attenuator 19 SCPI programmability adds GPIB command mnemonics

Out of stock

Quote Request

Please give us to call at 866-409-0400 to discuss when you can expect this product back in stock.

Already own one?

Description

The 68177B Synthesized Sweep Generator features 10 MHz to 50 GHz analog, step and manual sweep capability.

Accessories

Part Number Description
Qty
Power Cord
1
10370-10262 Maintenance Manual
1

Options

Option Description
1 Rack Mount Kit
2C 110 dB Step Attenuator, 10dB/step
9 Rear Panel RF Output
10 Complex Modulation
11 0.1 Hz Frequency Resolution
14 Wiltron 360B VNA compatibility rack mount
15 High Power Output
16 High Stability Timebase
17 Delete Front Panel
18 mmWave Bias Output
19 SCPI Programmability
21 High Spectral Purity Down Converter
22 0.1 Hz to 10 MHz Audio Frequency

Additional information

Weight 42 lbs
Dimensions 12 × 22 × 26 in
Condition

Model Number

Frequency Low Khz

Low Frequency

Manufacturer

Max Output

Modulation Type

Pre Owned

Type
