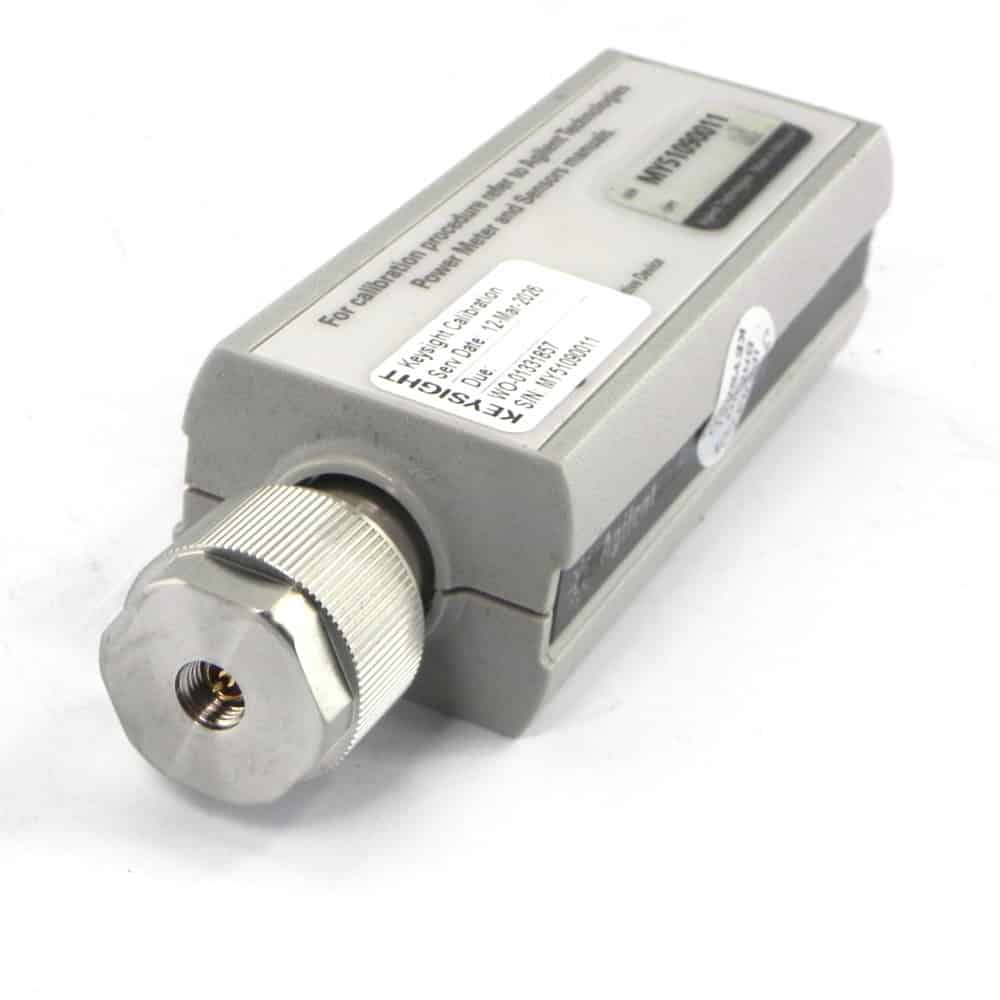

HP/Agilent N8485A Thermocouple Power Sensor, 10 MHz to 26.5 GHz
10 MHz to 26.5 GHz

Keysight N8485A Thermocouple Power Sensor, 10 MHz to 26.5 GHz


General Inquiries/Quote Request
Rental/Lease Information Request

Already Own One?
Get Repairs Calibration ...and more!

The new Agilent N8485A thermocouple power sensor provides better accurate power measurement as compared to the legacy 8485A. By integrating the EEPROM feature, now you can easily hook up the sensors to the power meter and the calibration factors will be automatically loaded to the power meter.

NOTE: CFT option is available as a replacement for legacy 8480 Series Power Sensors by maintaining the manual cal factor entry and SCPI compatibility.

SKU: KEYN8485A Categories: , Tag:
Brand:

Description

  • Frequency range from 10 MHz to 26.5 GHz
  • Frequency range from 10 MHz to 33 GHz (N8485A-033)
  • 55 dB wide dynamic range for one sensors solution from -35 dBm
    to +20 dBm (50 dB for CFT option)
  • Excellent SWR, linearity and repeatability
  • Built-in EEPROM features for easy calibration

Accessories

Part Number Description
Qty
N8481-90000 Operating and Service Manual
1

Options

Option Description
033 Frequency Range from 10 MHz to 33 GHz.
100 Type-N (m) Connector
200 APC-7 Connector
CFT No EEPROM Feature. Calibration factor data printed on label.

Additional information

Weight 2 lbs
Dimensions 9 × 8 × 3 in
Condition

Model Number

N8485A
Manufacturer

HP/Agilent
Type
