Keysight 11713B Attenuator/Switch Driver

Please give us to call at 866-409-0400 to discuss when you can expect this product back in stock.

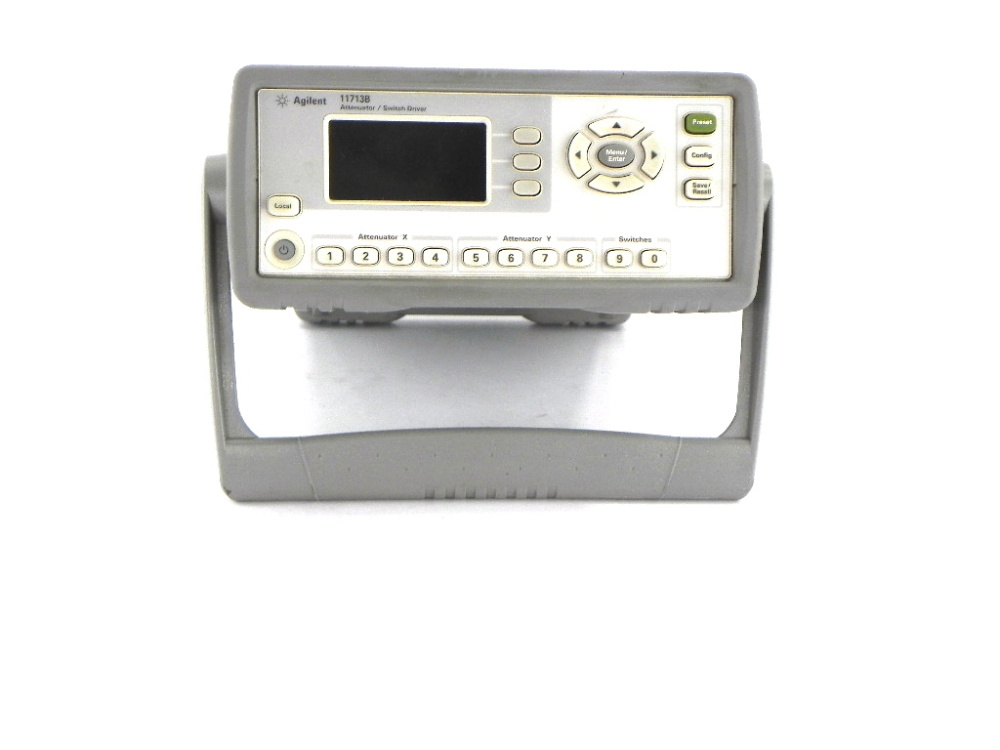

The Agilent 11713B attenuator/switch driver provides remote or front-panel drive control for 2 programmable attenuators and 2 SPDT switches. The Agilent 11713B can also be used to independently control up to 10 switches. Designed with both benchtop and ATE environments in mind, this flexible, stand-alone driver provides an intuitive user interface, a variety of switching options, software programmability and remote control features for quick, easy design validation and automated testing.

An integrated power supply eliminates the need for an external power source. Each Agilent 11713B is offered with nine optional plug-in drive cables to provide point-to-point connection to Agilent programmable attenuators and switches. The driver response time is less than 10 microseconds.

Description

Controls a combination of 2 programmable attenuators and 2 SPDT
switches
Or controls up to 10 SPDT switches
10-microsecond response time
2,000,000 switching cycles
GPIB with USB and LAN options for easy remote integration
Standard SCPI programming language
Full backward compatibility with the Agilent 11713A

Additional information

Weight 10 lbs
