Description

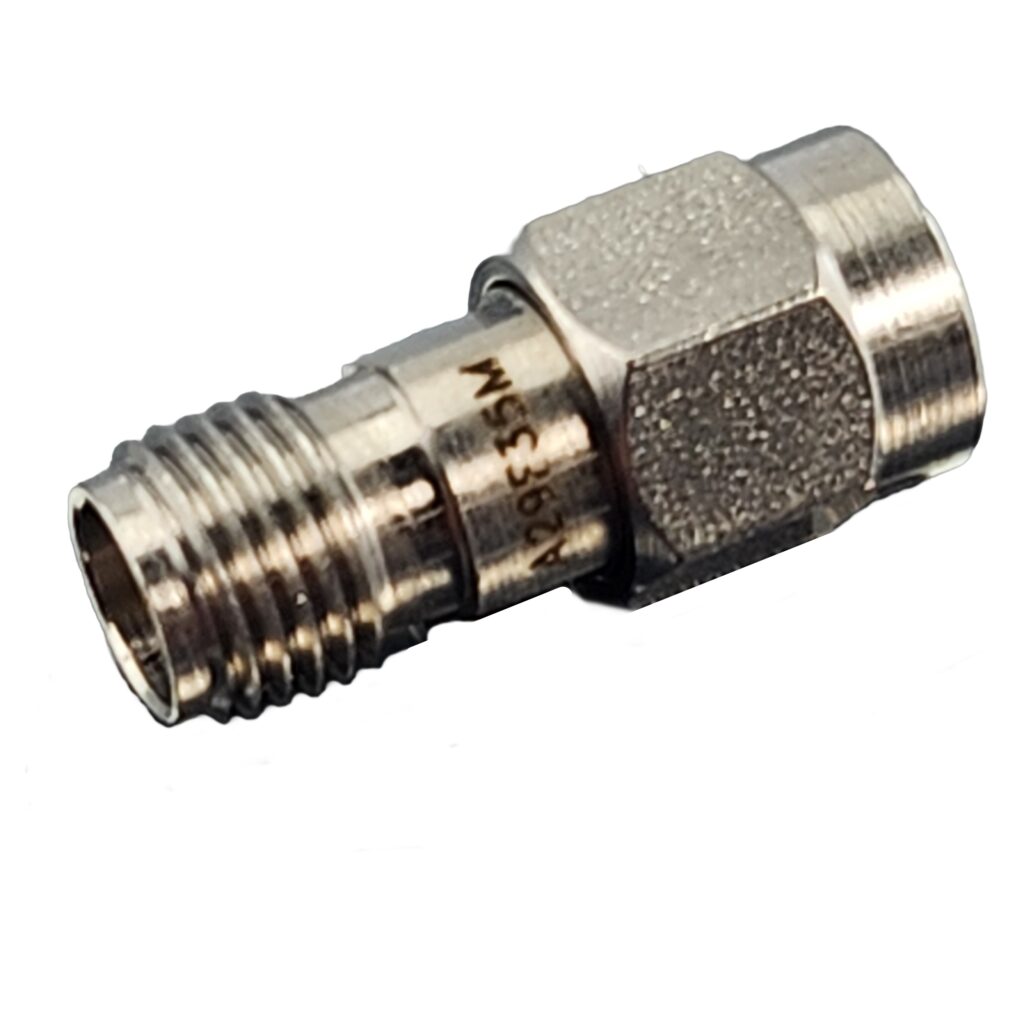

Part Number: A29F-35M
· 100% DFARS Compliant US Sourced Materials
· 100% US Designed/Engineered
· 100% US Manufactured
Connector 1: 2.92mm Female
Connector 2: 3.5mm Male
Frequency: 0 – 33 GHz
VSWR: 1.15 Max @ 33 GHz
Impedance: 50-Ohm
Specification: IEEE STD 287
Temperature Range: -65 to 165 C
IN-SERIES
1.85mm In-Series, 65 GHz Adapters
2.4mm In-Series, 50 GHz Adapters
2.92mm In-Series, 40 GHz Adapters
3.5mm In-Series, 33 GHz Adapters
SMA In-Series, 27 GHz Adapters
Type N In-Series, 18 GHz Adapters
BETWEEN SERIES
1.85mm to 3.5mm Adapters
2.4mm to 2.92mm Adapters
2.4mm to 3.5mm Adapters
2.4mm to Type N Adapters
2.92mm to 3.5mm Adapters
3.5mm to Type N Adapters
BNC to Type N Adapters
BNC to SMA Adapters
SMA to Type N Adapters
A29F-35M 2.92mm Female to 3.5mm Male Adapter Datasheet:
