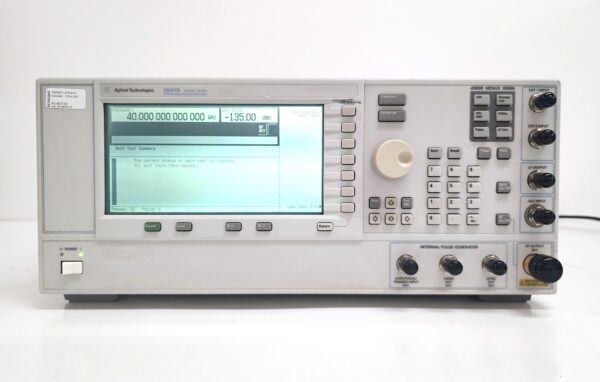

HP/Agilent Keysight E8257D with Options 540/007/1E1/UNU/UNX PSG Analog Signal Generator


General Inquiries/Quote Request
Rental/Lease Information Request

$51,500.00

1 in stock

HP/Agilent Keysight E8257D with Options 540/007/1E1/UNU/UNX PSG Analog Signal Generator

Includes OEM Calibration

The E8257D PSG analog signal generator delivers industry-leading output power, level accuracy, and phase noise performance up to 67 GHz (operational to 70 GHz). The E8257D PSG high output power and superior level accuracy often eliminates the need of an external amplifier for testing high power devices and minimizes test uncertainty to identify errors early in the design process. The world-class phase noise performance is ideal for local oscillator, low jitter clock substitution and adjacent channel selectivity tests. When testing advanced RF & microwave radar, communications, and control systems, the PSG delivers the performance you demand.

SKU: KEY8257D-540/007/1E1/UNU/UNX Category: Tag: Brands: , ,

Description

250 kHz to 20, 31.8, 40, 50 or 67 GHz, operational to 70 GHz (.001 Hz resolution)
Extendable to 75, 90, 110, 140, 170, 220, or 325 GHz
+23 dBm @ 20 GHz, +17dBm @ 40 GHz, +14 dBm @ 67 GHz output power (typ)
AM, FM, ØM, pulse, and scan
8 ns rise/fall times and 20 ns pulse width (typ)
Dual internal function generators: sine, square, triangular, ramp, and noise
Step, list, and ramp sweep (frequency and power)
Agilent 8757D scalar network analyzer code compatible
10BaseT LAN and GPIB
SCPI and IVI-COM drivers
Backwards compatible with all PSG signal generators

HP/Agilent Keysight E8257D with Options 540/007/1E1/UNU/UNX PSG Analog Signal Generator

Includes OEM Calibration

Additional information

Weight 45 lbs
Dimensions 10 × 20 × 23 in
